43 inch detachable drawing board digital signage dd4310w

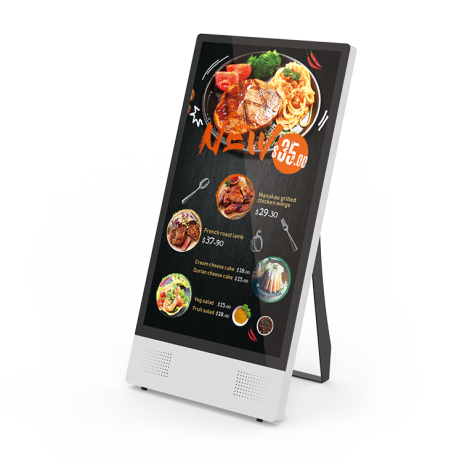

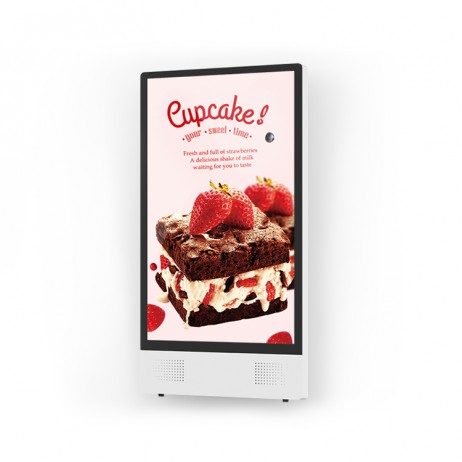

Digital signage dd4310w wall mounted-43 inch HD screen

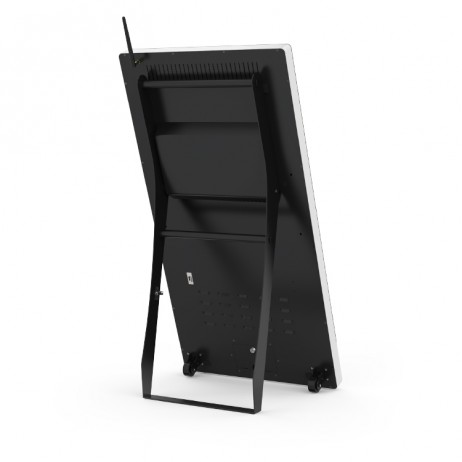

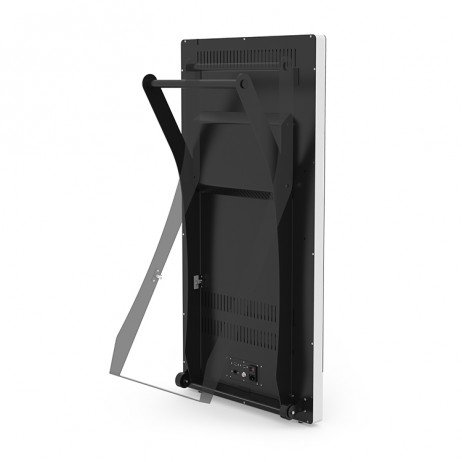

Digital signage dd4310w wall mounted-detachable drawing board
Digital signage dd4310w wall mounted-moving wheels

DD-4310W

43 Inch Detachable Drawing Board Digital Signage

Features

 43 inch HD high brightness screen
• Detachable and foldable supporting frame
• Equipped with moving wheels
• Support Ethernet and WIFI

43 inch detachable drawing board digital signage dd4310w

Application

Specs

OS Support

WIN 10 (Trial version)
CPU
Intel Celeron J1900 quad-core 2.0G
System Memory
4G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI
Android 6.0 and higher version
CPU
A83T Cortex-A7 octa-core 2.0GHz
System Memory
1G/2G
Disk
8G/16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

LCD

Type
TFT-LCD
Contrast Ratio
1200:1
Screen Size
43〞
Response Time
8ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
400cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
<75W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L590×W280×H1170(Floor-standing)
L590×W96×H1160(Wall mounting)
Package
L1325×W445×H825
Net Weight
37kg (Floor-standing)/32.5kg(Wall mounting)
Gross Weight
67kg(Floor-standing)/62.5kg(Wall mounting)

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor
