Maken - 32 inch Self-Ordering Kiosk KH-3200

KH-3200

32 inch Self-Ordering Kiosk

Features

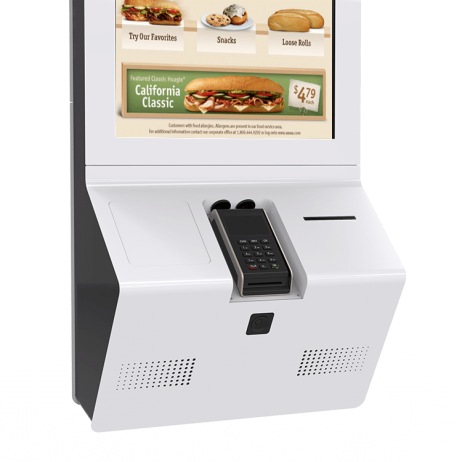

• With card reader space, printer, scanner model, etc

• Multi-touch capacitive screen

• Flexible choices of windows and android system

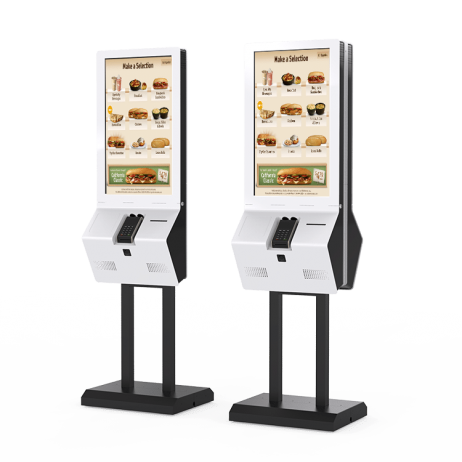

• Support single or double screens installation

Overview Application Specs Resources

Self-ordering kiosk kh3200

Application

Specs

KH-3200

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*5/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*3/RJ45*1

Network

Etherner/WIFI

Screen

Type

Projected Capacitive Touch (10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

32 inch

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

400cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜120W

Enclosure

Material

SPCC

Surface

Powder coated

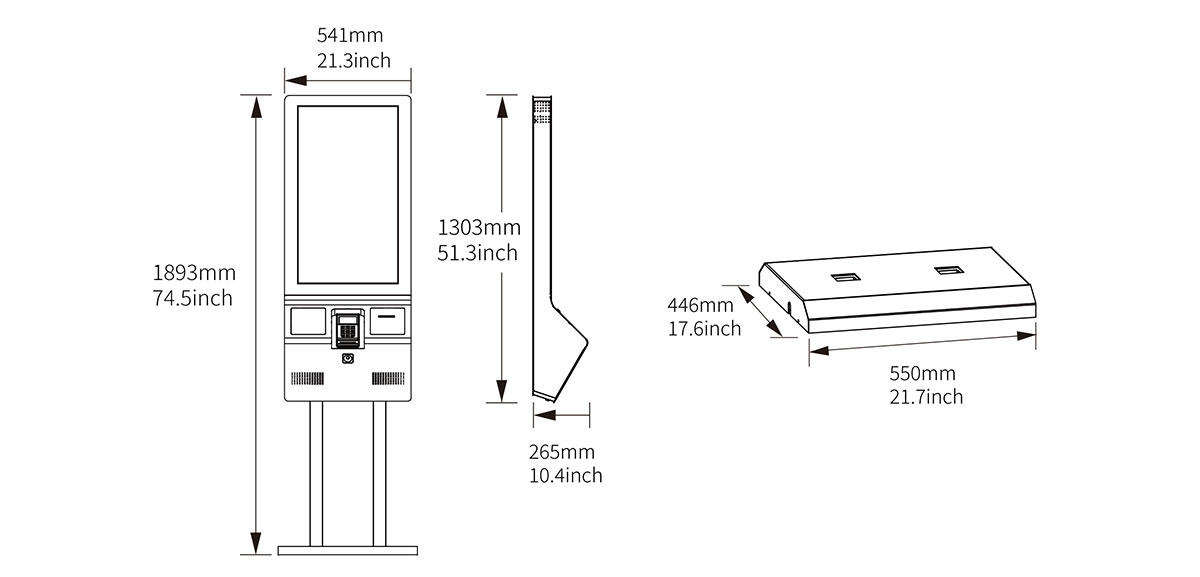

Overall Size

W550×D446×H1893mm(single screen flooring）
W541×D265×H1303mm（wall mounting ）

Package

1950×535×790mm(single screen flooring）
1475×475×790mm（wall mounting ）

Net Weight

single screen flooring: 88kg
wall mounting: 45kg

Gross Weight

single screen flooring: 128kg
wall mounting: 85kg

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Build-in Devices

Printer

80mm thermal printer with auto cutter

Scanner

2D,area-imaging scanner

Assembly & Installation

Resources

Brochure（PDF）
