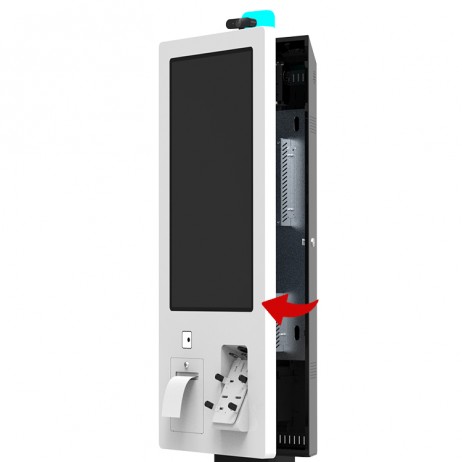

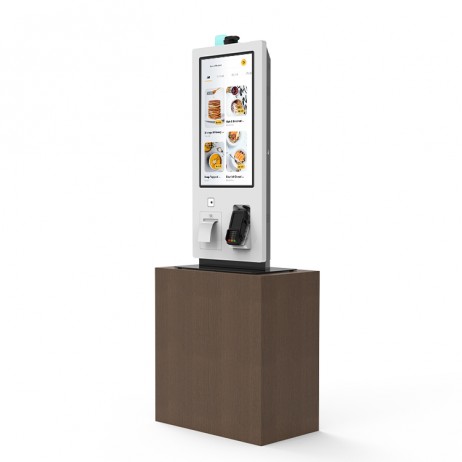

Maken - 27 inch Self-Ordering Kiosk KH-2730

KH-2730

27 inch Self-Ordering Kiosk

Features

• 27 inch PCAP touch screen

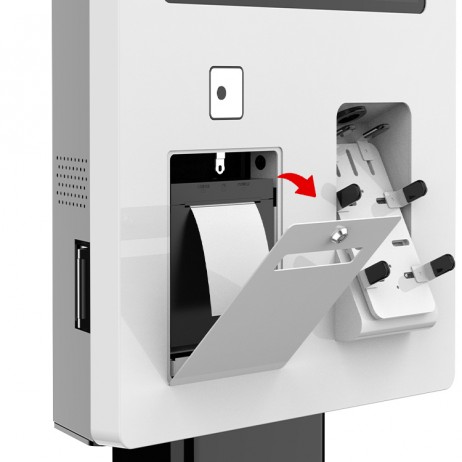

• Built-in high speed receipt printer & scanner

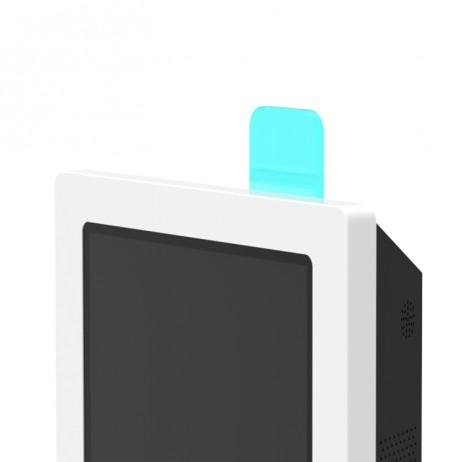

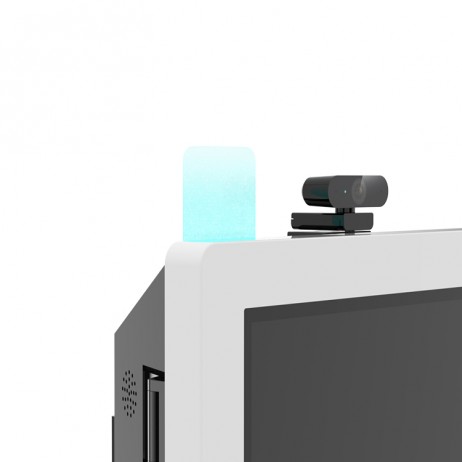

• Camera & Indicator light

• Support Ethemet & WiFi

Overview Application Specs Resources

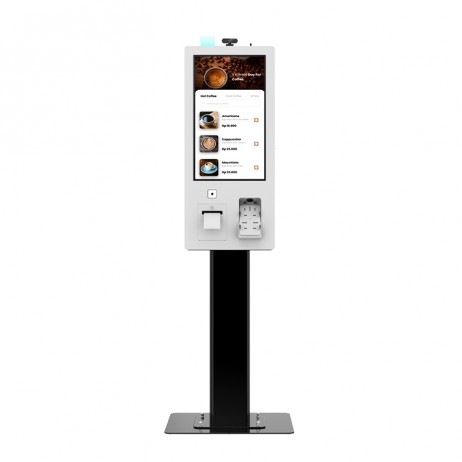

Self-ordering kiosk kh2730

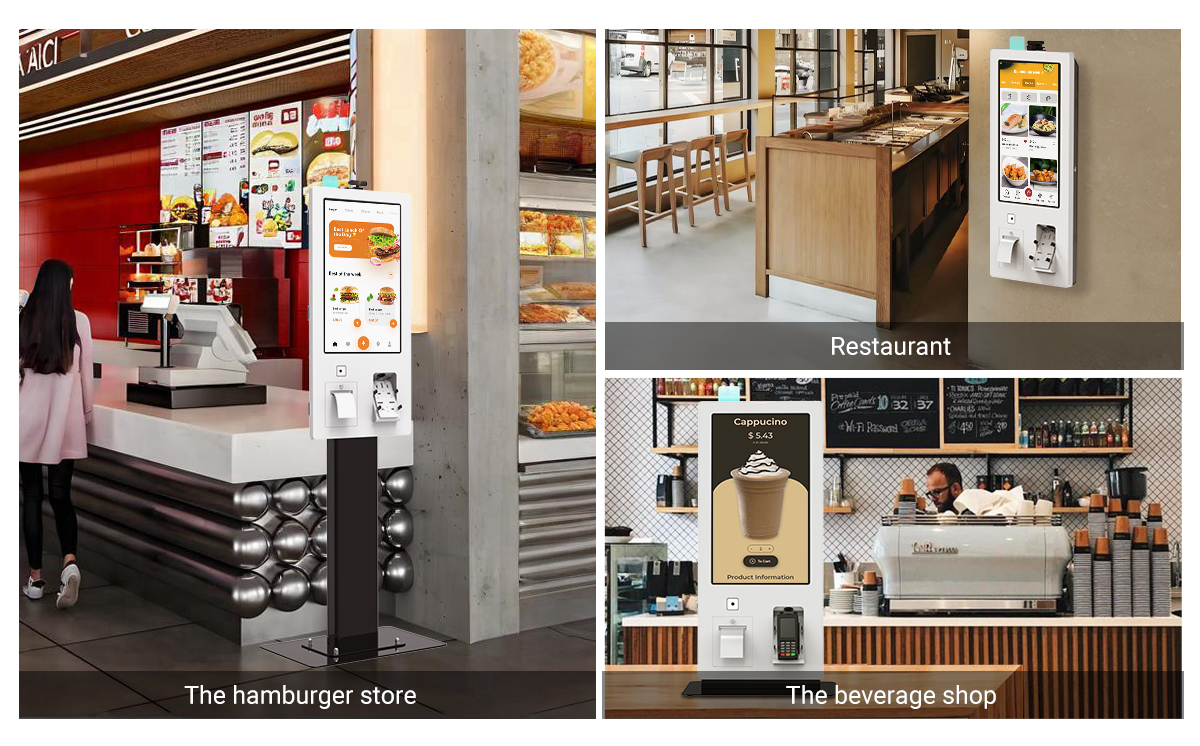

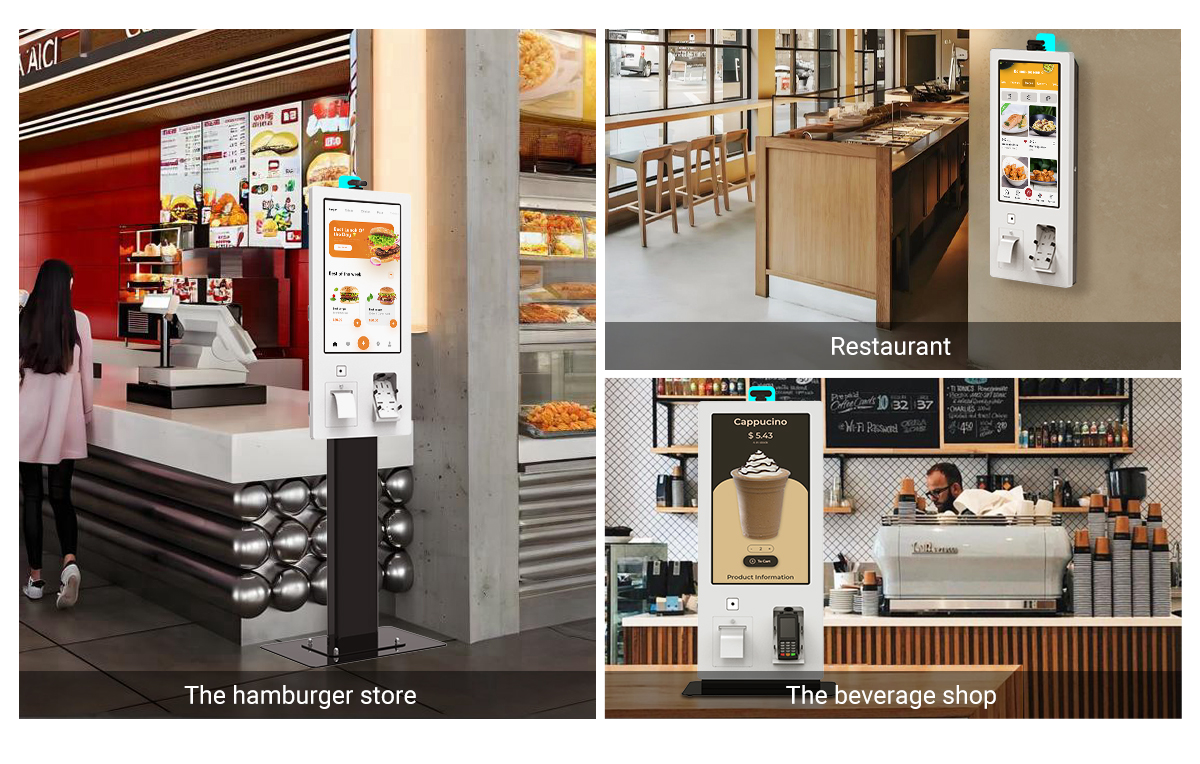

Application

Specs

KH-2730

OS Support

WIN 10 (Trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Ethernet/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

Disk

32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Ethernet/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1

Screen Size

27"

Response Time

12ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜100W

Enclosure

Material

SPCC

Surface

Powder coated

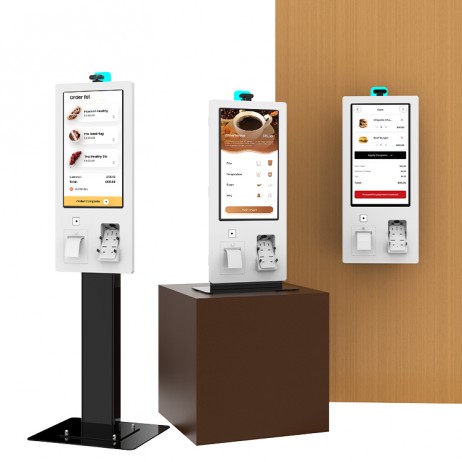

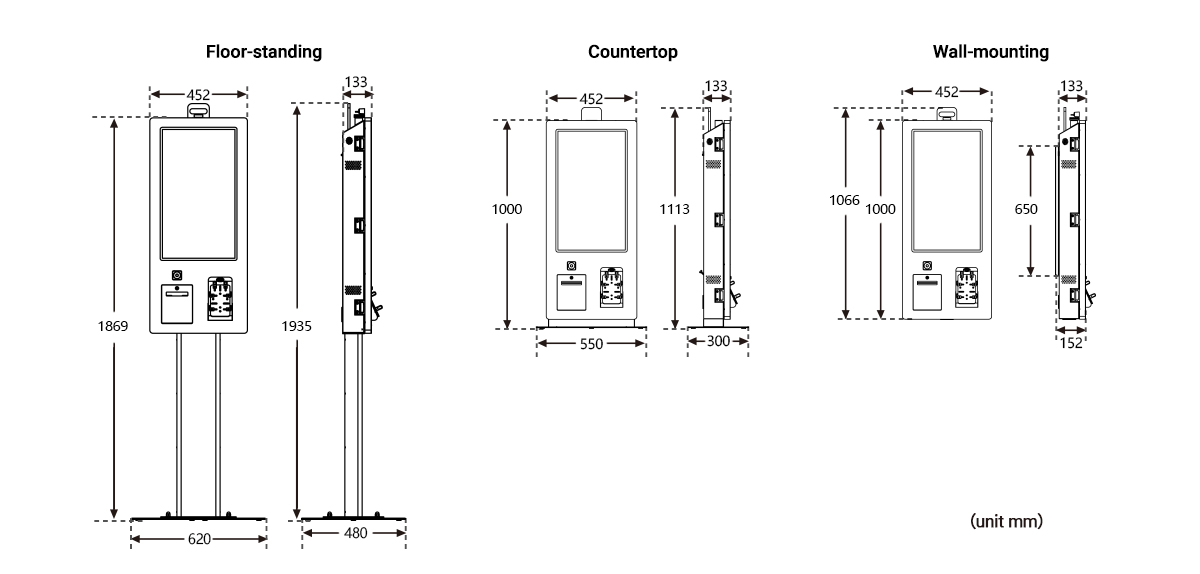

Overall Size

L620×W480×H1935 mm (Floor-standing）
L452×W300×H1113 mm（Countertop）

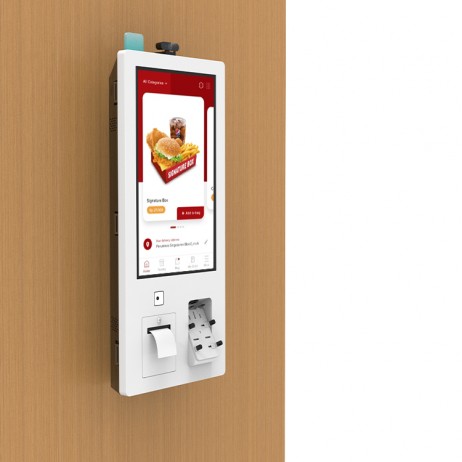

L452×W152×H1066 mm（Wall-mounting)

Package

63kg (Floor-standing）
45kg（Countertop）
40kg（Wall-mounting)

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

Indoor

Build-in Devices

Printer

80mm thermal printer with auto cutter

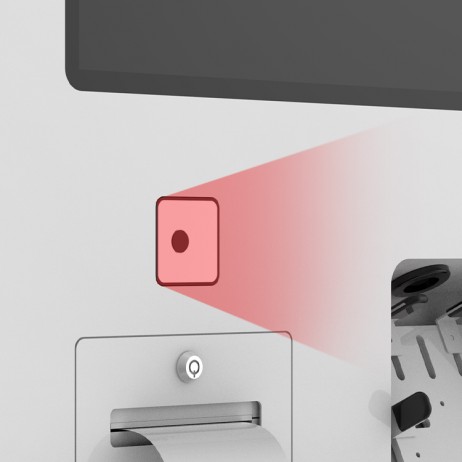

Scanner

1D/2D

Resources

KH-2730(MAKEN）.pdf
