KH-1500C

15.6 inch Self-Ordering Kiosk

Features

• 15.6 inch PCAP touch screen

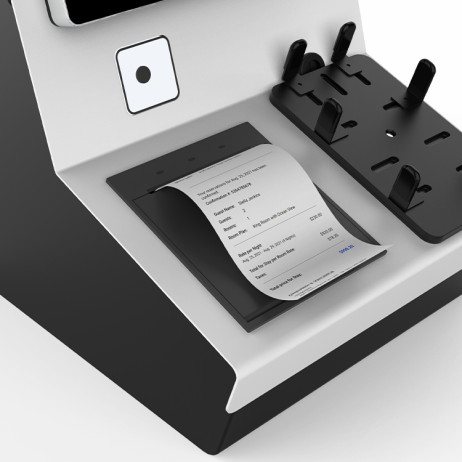

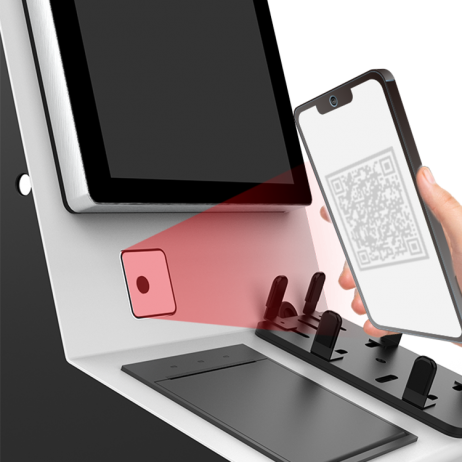

• Built-in high speed receipt printer, 2d scanner

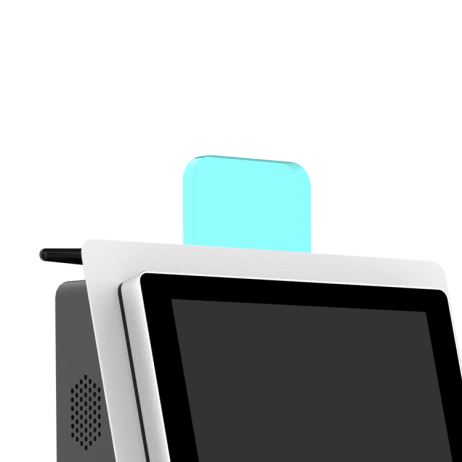

• Indicator light

• Support Ethemet & WiFi


Overview Application Specs Resources

Self-ordering kiosk kh1500c

Application

Specs

KH-2730

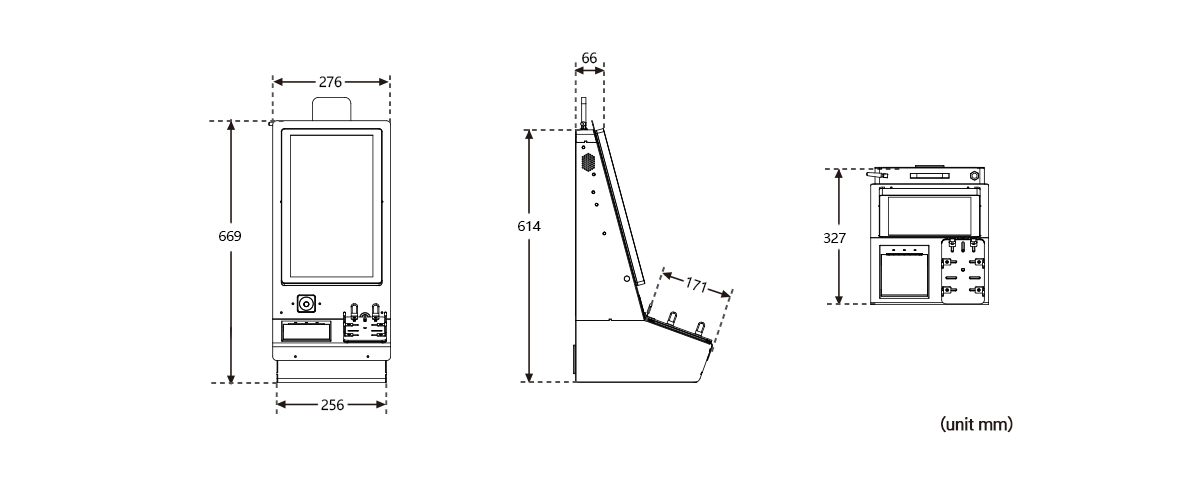

Product size picture

OS Support

WIN 10 (Trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Ethernet/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
4G
Disk
32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Ethernet/WIFI

Screen

Type
PCAP 10 points
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
800:1
Screen Size
15.6"
Response Time
20ms
Max Resolution
1920×1080
Viewing Angle
H170° V170°
Aspect Ratio
16:9
Display Colors
16.2M
Brightness
300cd/㎡
Refresh Rate
60Hz
Panel Life
15000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
＜85W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L276×W327×H669 mm
Package
15kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
Indoor

Build-in Devices

Printer
80mm thermal printer with auto cutter
Scanner
1D/2D
