KR-2700
Features
▪ 10 points PCAP touch
▪ Built-in printer/scanner/camera
▪ Support ethernet & WiFi

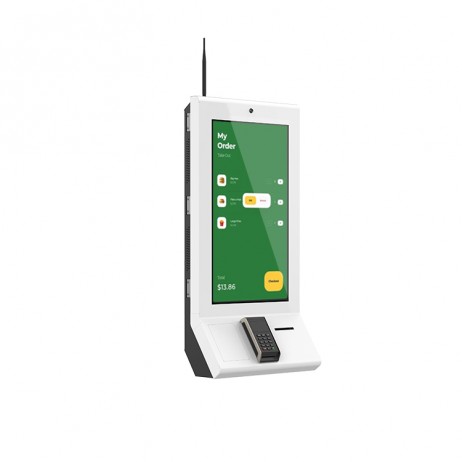

▪ Application: floor standing/wall-mounting
VIDEO↓
Compact Configuration
Space Efficient

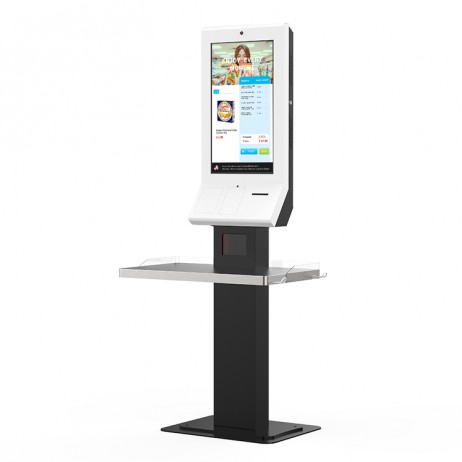

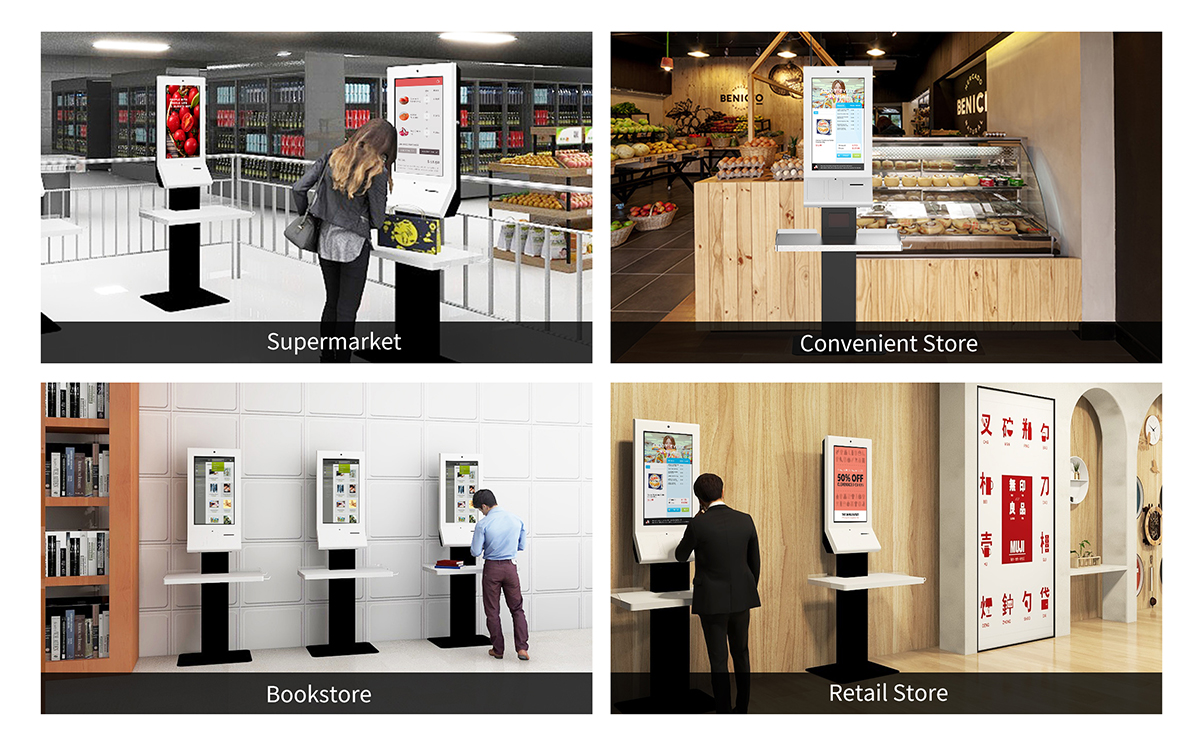

Compact self-checkout kiosk KR-2700, is combined with 27" HD touch screen, built-in large screen scanner,printer, and high camera, offering free efficient self-checkout service.State-of-the-art sheet metal fabricated body of the kiosk, with compact configuration and space efficient, isvery suitable for medium and small supermarkets, retail shops, or commercial space with limited space.The stylish design of KR-2700, it not only relieve the pressure of queuing and crowded customers flow,offering excellent checkout experience; but also creats more economic benifits for labor cost reduction andefficiency improvement.
HD Touch Screen
10 Points Touch
27" HD original commercial screen, configurated with 1920x1080 high resolution and 178° viewing image,offers users comfortable visual experience.
10 points capacitive touch and 10ms fast response, support kinds of gestures by point or slide touch withnice checkout experience.
Large Scanning Space
High Efficient Checkout

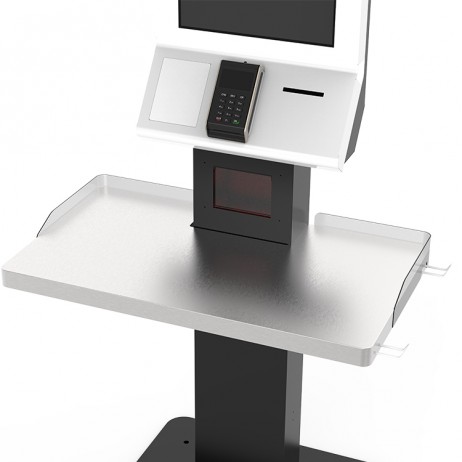

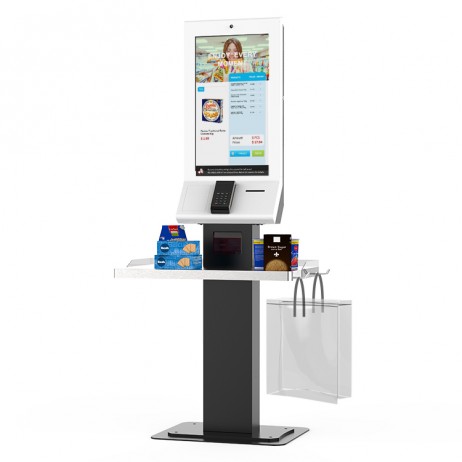

Large space designed in the middle of checkout kiosk, is helpful for comfortable checkout.Large vertical scanner, supports skimming and induction scanning, and is very sensitive to read all kinds ofbarcode and QR code on presswork or mobile phone.Brushed stainless steel storage platform, 30kg bearing capacity, equipped with dual hangers on right sidefor shopping bags hanging, is convenient for fast checkout and packing at a time.
Electronic Modularization
Easy Maintenance
All the interior electronic devices are modularized design under well organized, in safety and neat.In case of upgrade or after-sales maintenance, each module can be replaced directly and easily.The screen metal structure is designed with side lockable door, for easy printing paper change and dailymaintenance.
The interior of the stand, reserves space for cable hidden routing, and also storage space for smallelements, such as sockets, golves, tools and accessories etc.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 27" 1920x1080 16:9 300cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 3000:1 12ms H178° V178° 16.7M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <110W |
Enclosure
Material Surface Overall Size
Net Weight Package Size

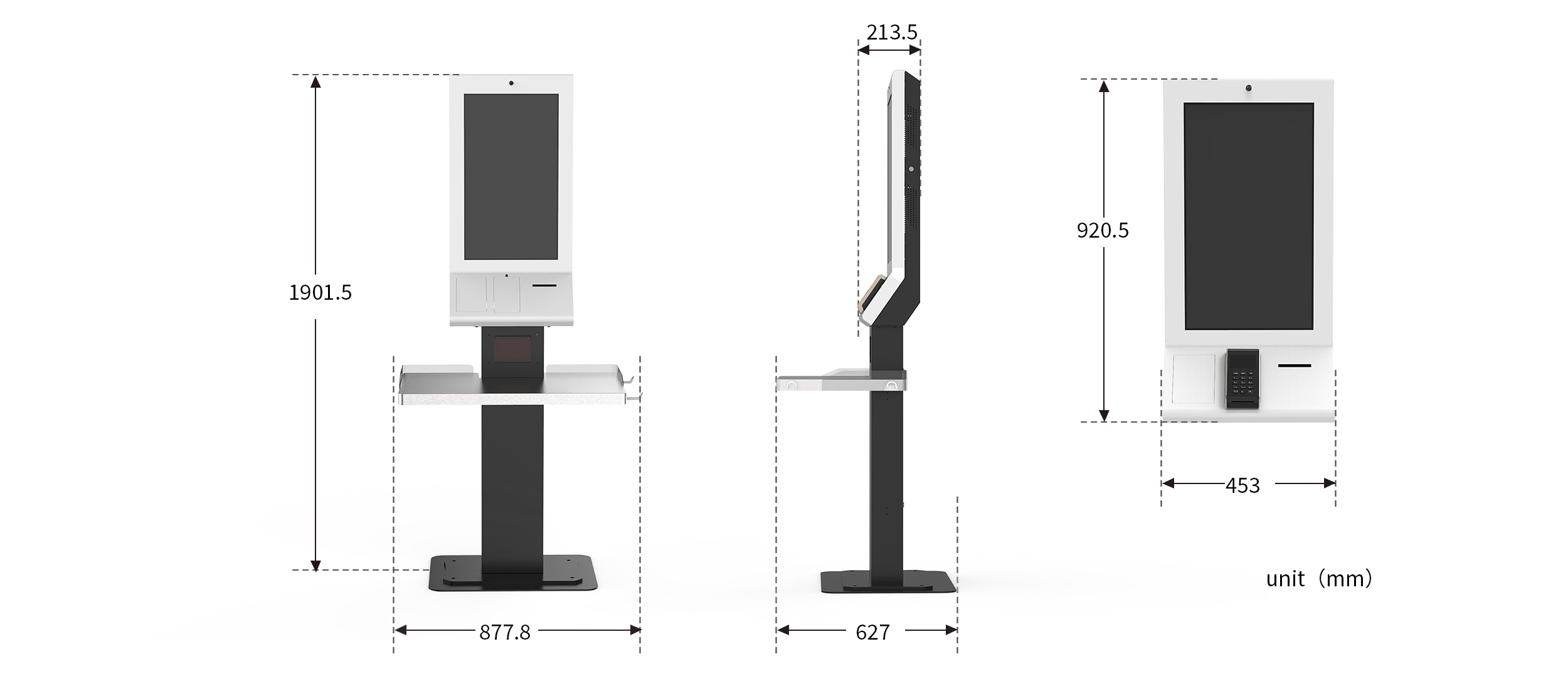

| SPCC Powder coated L627×W877.8×H1901.5mm(floorstanding) 75.752kg（floorstanding）/ 27kg（wall-mounted） L345×W583×H1050.5mm（wall-mounted） 35kg（wall-mounted） |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
