KR-1900
Features
▪ Multi-touch screen, easy operation and fast response

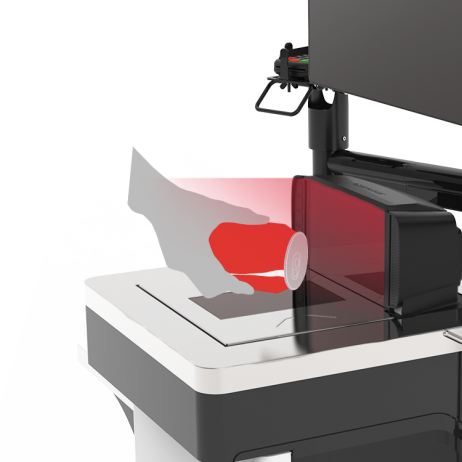

▪ Datalogic 2D high performance scanner, equipped with hori-zontal and vertical dual windows for scanning(Optional with weight scale)
▪ Combined with two storage platforms on left and right sides
▪ Stylish payment terminals integrated with touch screen, dualscanning windows, card reader holder, and printer holder, freerotatable metal allocation for each module, offering brilliantoperation experience.
VIDEO↓
Integrated Payment Modules
Complete Operation Function

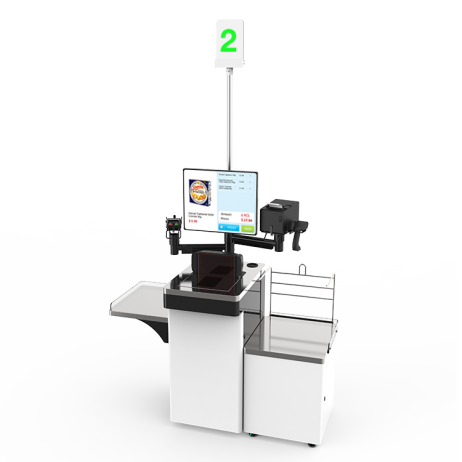

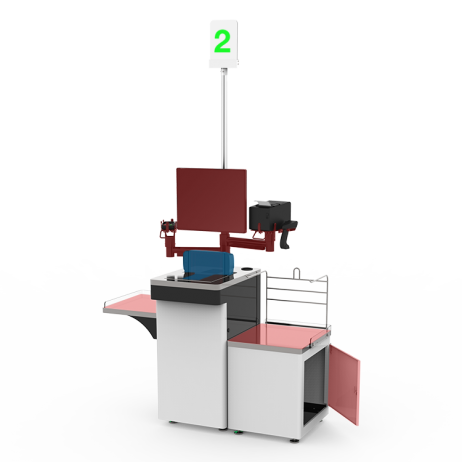

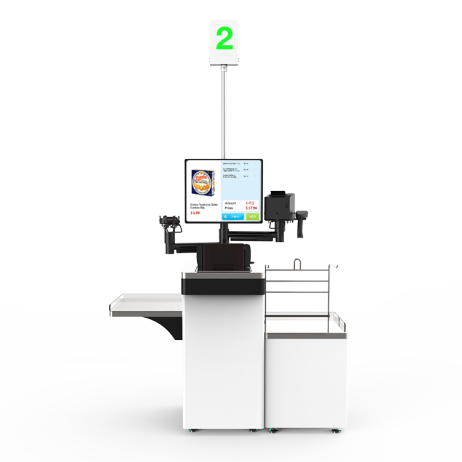

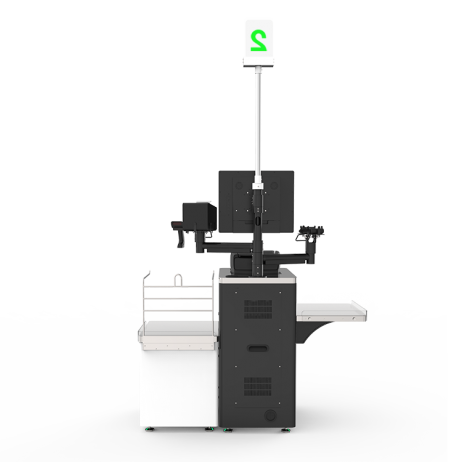

The combined self-checkout kiosk KR-1900, integrated with diverse function modules 19" HD touch screen, vertical and hori-2ontal dual windows scanner, two individual platforms for storage and packing, printer bracket, rotated card reader bracket,and storage room etc. The overallayout is in line with ergonomics in strong practicality. It offers users brilliant check out andpacking experience. KR-1900 is widely applicable to supermarket, shopping mall, and department stores etc.The kiosk body is sheet metal fabricated, strong and durable. Each module can be packed individually for efficient transportation. Its modularization design is also very easy for installation.
Brand HD Touch Screen
19" HD original commercial screen, angle adjustable mounting.10 points capacitive touch, 10ms fast response, is sensitive to kinds of gestures by point or slide touch with nice checkoutexperience.
1280x1024 high resolution and 178° viewing with exquisite image, bringing users comfortable visual experience.
Cable Interior Hidden Routing and Storage
Cable routing is interior hidden, allcables start from each module, and go through inner tube of stand to the cable roomfrom backward door.
The cable room keeps all cables and power switch safe from public damage, and easy for daily maintenance.The built in metal tray under the scanner, keeps the cable room from water proof, and is convenient for daily cleaning.Storage cabinet equipped on right side. for daily items needed storage, such as shopping bags, printing paper, cleaningitems, tools and accessories etc.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*5/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*3/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 19" 1280×1024 5:4 300cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 1000:1 5ms H178° V178° 16.7M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <165W |
Enclosure

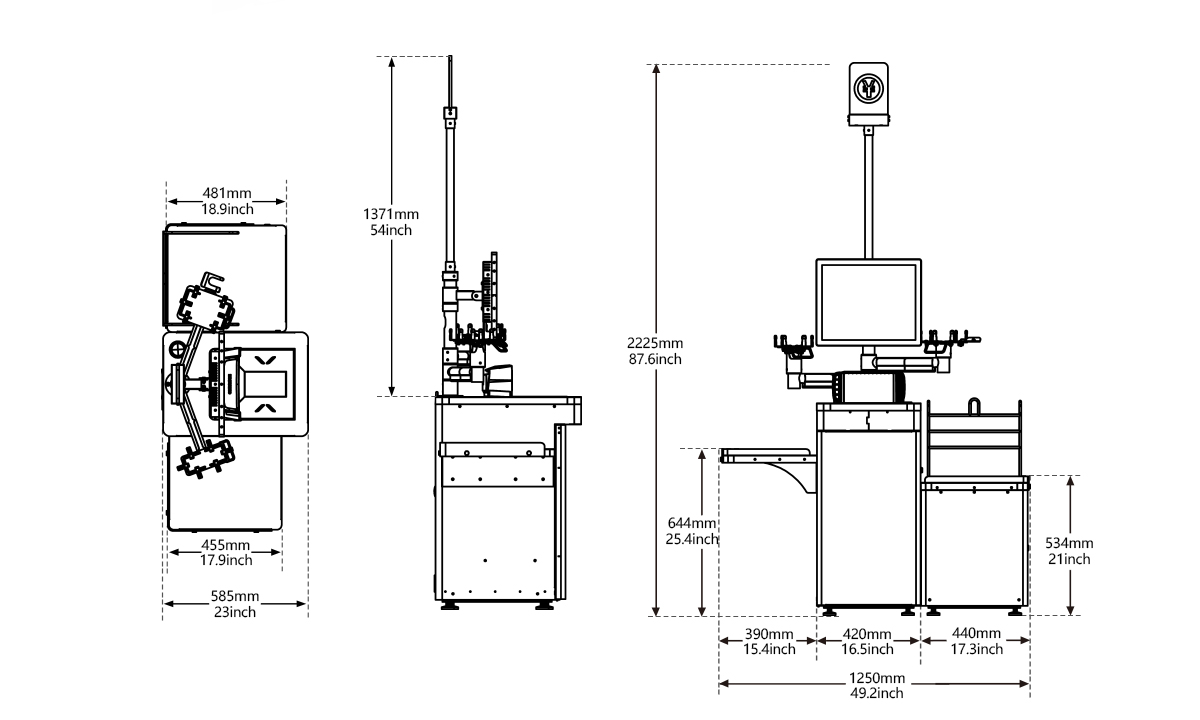

Material Surface Overall size Net Weight Gross Weight | SPCC Powder coated W1250xD585xH2225 mm 83kg 113kg |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
