KH-2100C
Features
▪ 21.5" HD touch screen
▪ 10 points PCAP touch
▪ Support ethernet & WiFi
▪ Options: printer, scanner, card reader holder and camera
▪ Application: countertop
Compact Combination
Efficient Checkout & Space Saving

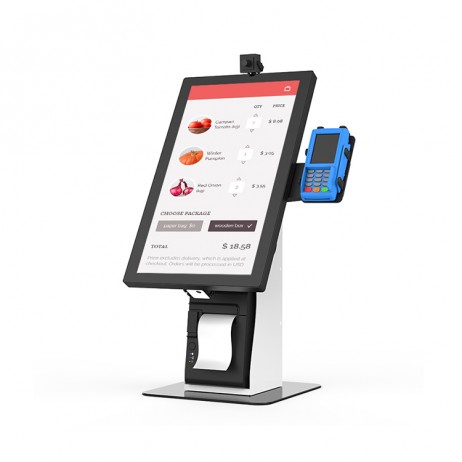

The countertop combined self-checkout kiosk KH-2100C, its highlight characteristics are fashioncompact structure and efficient checkout without flooring space occupation. It can be easily installed,such as on the commercial display counter or checkout counter directly, and is suitable for retailshops, restaurant, and small supermarket.
The kiosk is combined with 21.5inch HD touch screen and stand with free space for printer, Severaloption devices are available to meet different application requirement, including printer, scanner,camera and card reader holder.

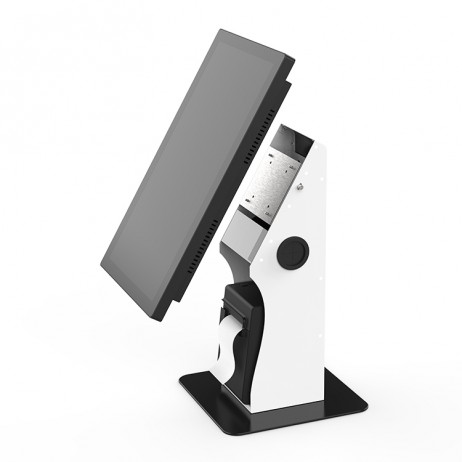

Stable base with dual assembled panels.
HD Original Screen
Multiple Points Capacitive Touch
21.5" HD original commercial screen, configurated with 1920x1080 high resolution, 3000:1 ratio,and 178° viewing image, offers users comfortable visual experience.10-point capacitive touch and 10ms fast response, support kinds of gestures by point or slidetouch with fantastic checkout experience.
Cable Hidden Routing
High Security

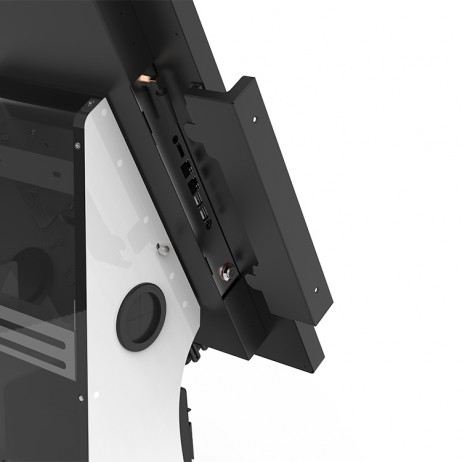

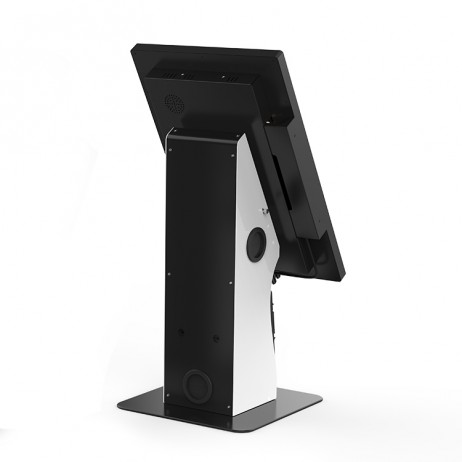

The interior of the stand, reserving space for cable hidden routing, and has advantage of safety and neat.The cable cover is equipped to the side of the screen, protecting the switch, interface and cables frompublic touch and damage.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 21.5" 1920x1080 16:9 500cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 1000:1 14ms H178° V178° 16.7M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <35W |
Enclosure

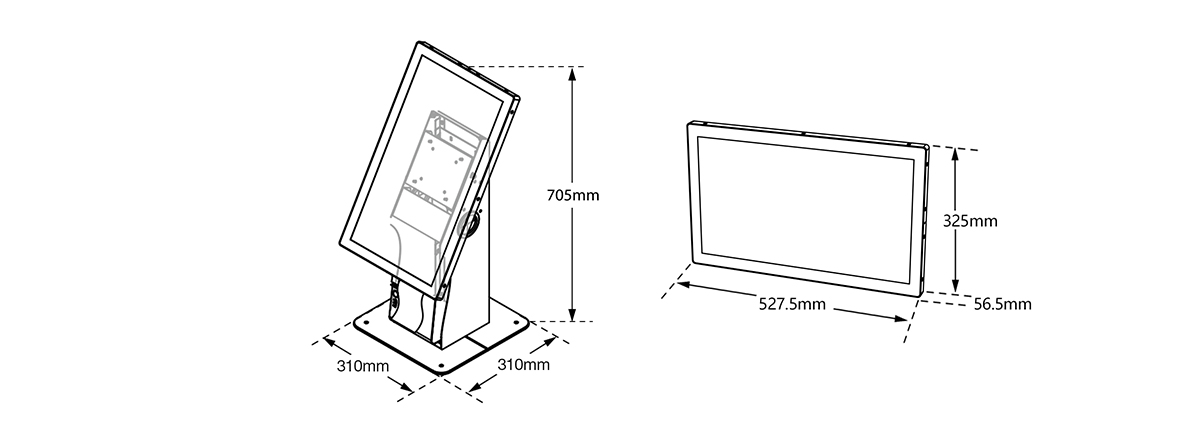

Material Surface Overall size Net Weight Gross Weight | SPCC Powder coated W325xD340xH705 mm 16.5kg 12kg (countertop stand) / 10.5kg (21.5-inch screen only) |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
