Maken - 24 inch Kiosk POS KP-2400

KP-2400

24 inch Kiosk POS

Features

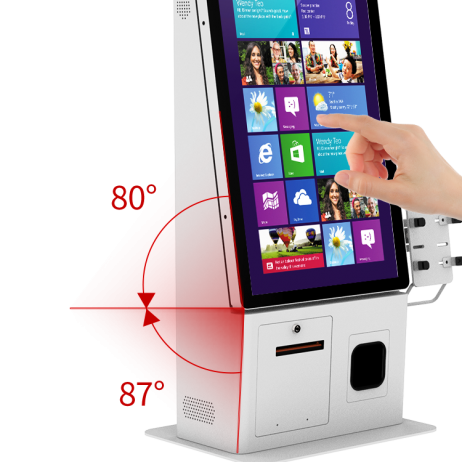

• 24-inch HD touch screen

• Built-in scanner and printer

• Option：Camera

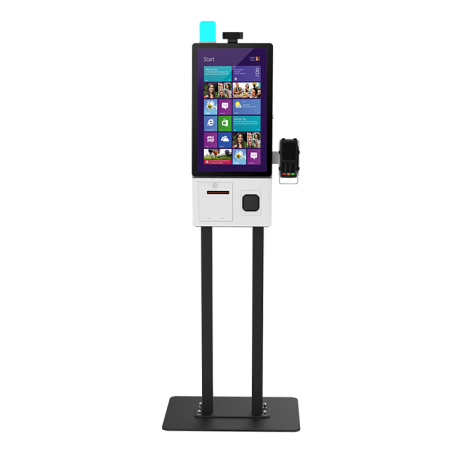

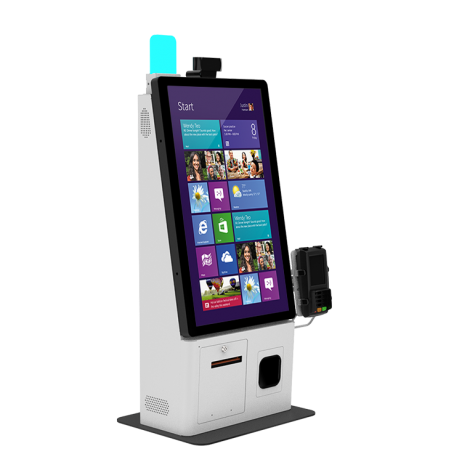

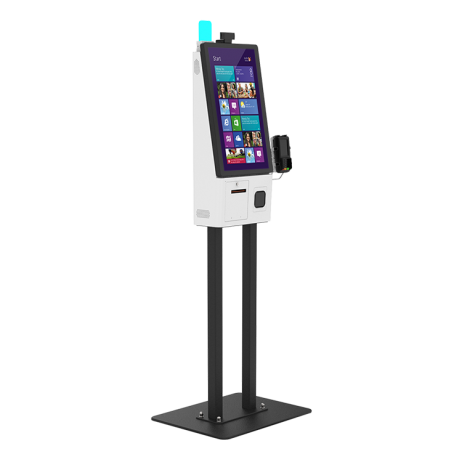

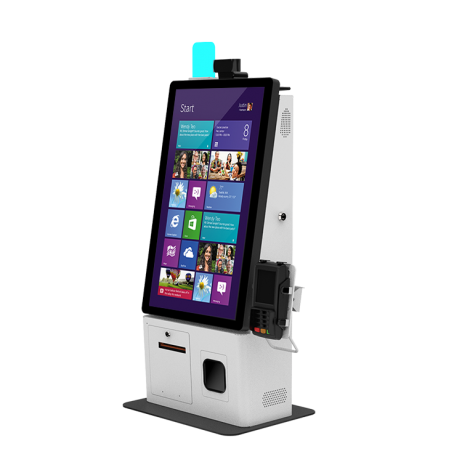

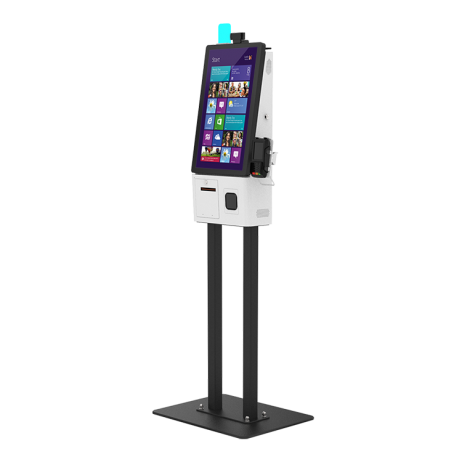

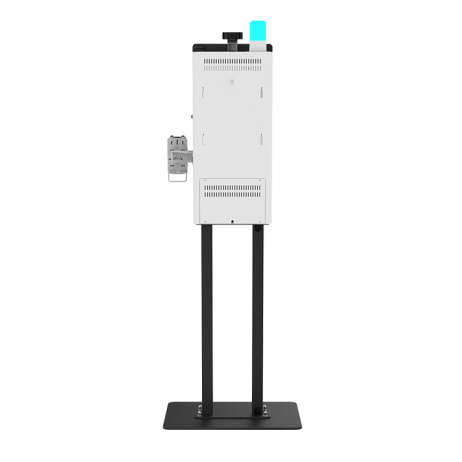

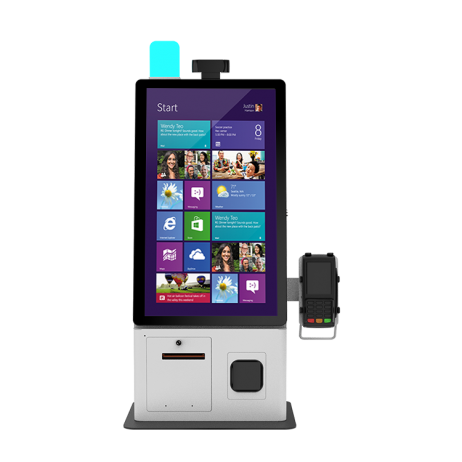

• Mounting Options: Countertop,floor standing,wall mounting

Overview Application Specs Resources

Kiosk pos kp2400

Application

Specs

KP-2400

OS Support

WIN10(trial version)

CPU

Intel Celeron J6412 Quad-core 2.0GHz

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Ethernet/WIFI

Android 11

CPU

Rockchip RK3568 Quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Ethernet/WIFI

Screen

Type

Projected capacitive touch (10 points)

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

1000:1

Screen size

24 inch

Response Time

14ms

Max Resolution

1920*1080

Viewing Angle

H178º V178º

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

250cd/m²

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

<100W

Enclosure

Material

SPCC

Surface

Powder coated

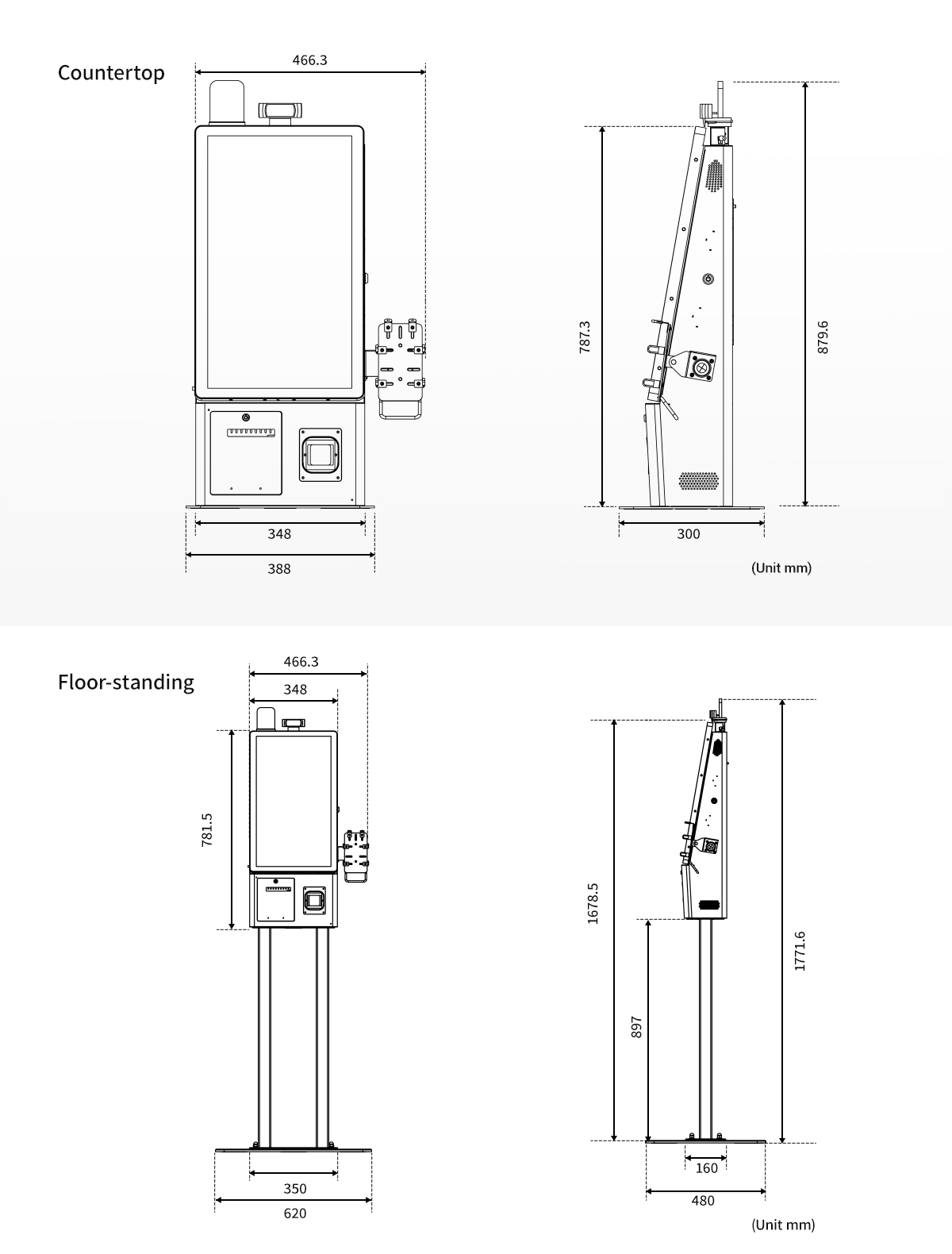

Overall Size

466.3*879.6*300mm（Countertop）
620*1771.6*480mm（Floor-standing）

Package

1055*300*475mm （Countertop)
1135*435*550mm（Floor-standing）

Net Weight

31.5kg（Countertop)
50.5kg（Floor-standing)

Gross Weight

39kg （Countertop）
60kg（Floor-standing）

Application

Working Temperature

0～40℃

Storage Temperature

-20～60℃

Working Humidity

20%～80%

Storage Humidity

10%～90%

Application

Indoor

Build-in Devices

Printer

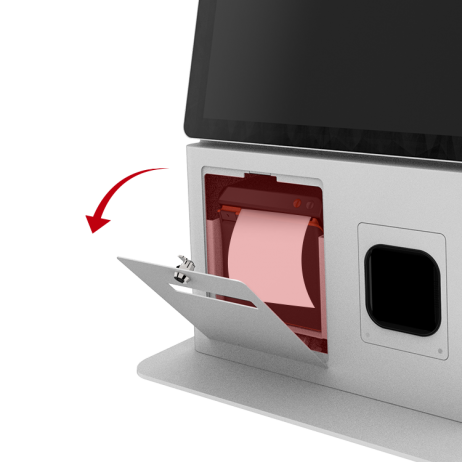

Thermal printer with cutter，paper roll 80mm*80mm

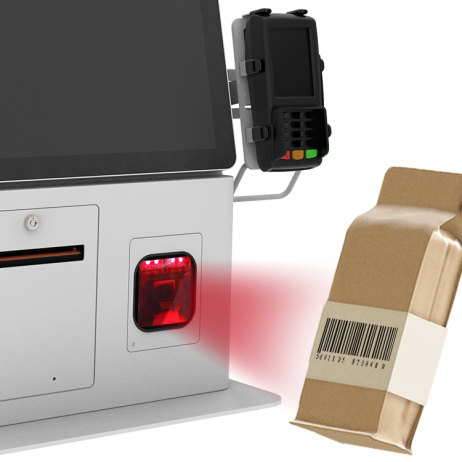

Scanner

Standard setup

Card Reader Holder

Standard setup(holder width 52-92mm)

Camera

Option，200W

Indicator Light

Standard setup
