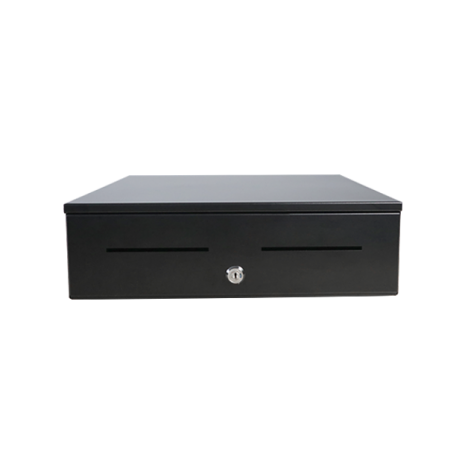

Maken - High End Cash Drawer HD-1616

HD-1616

High End Cash Drawer

Features

• Heavy-duty steel consturction

• Large capacity and flexible storage

• Special protection of release mechanism

• Screwless bottom & removable interface

Overview Application Specs & Assembly Resources

High end cash drawer hd1616

Application

Specs & Assembly

HD-1616

Information

Model

HD-1616

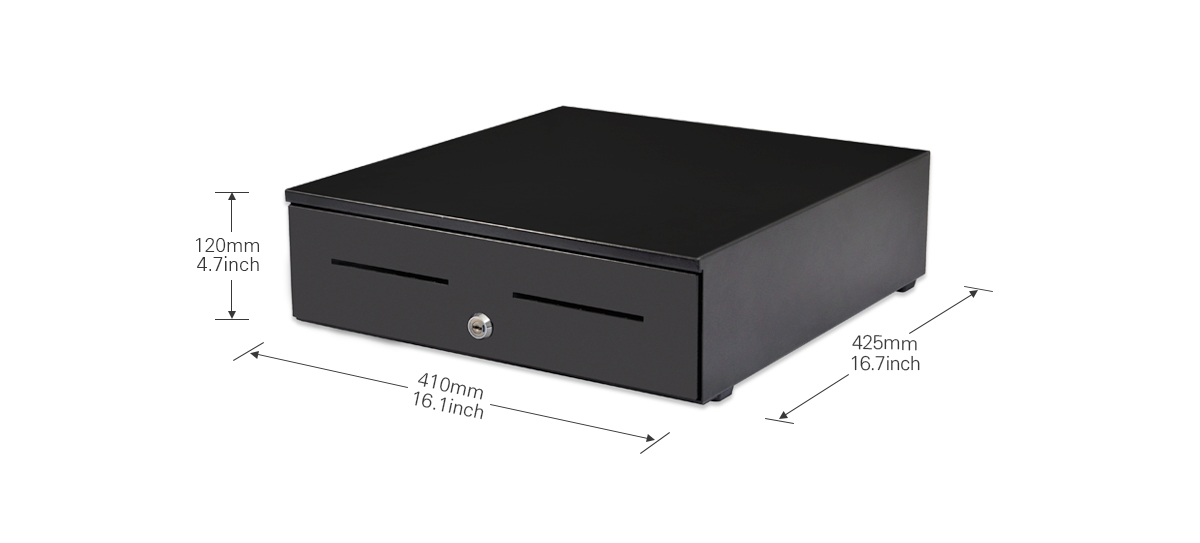

Dimensions(mm)

410W×425D×120H（Excluding feet height）
410W×425D×127H（Including feet height）

Dimensions(inch)

16.1W×16.7D×4.7H（Excluding feet height）
16.1W×16.7D×5.0H（Including feet height）

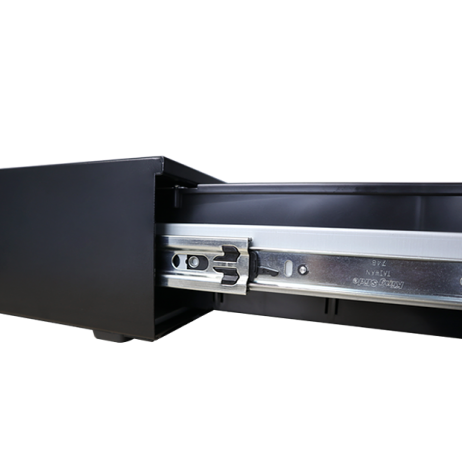

Mechanism

Ball Bearing Slide

Material

Metal

Metal Drawer

Yes

Media Slot

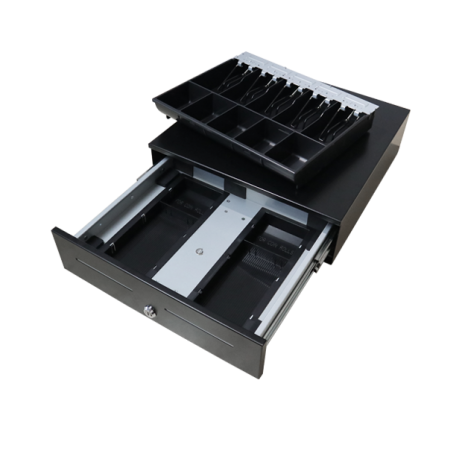

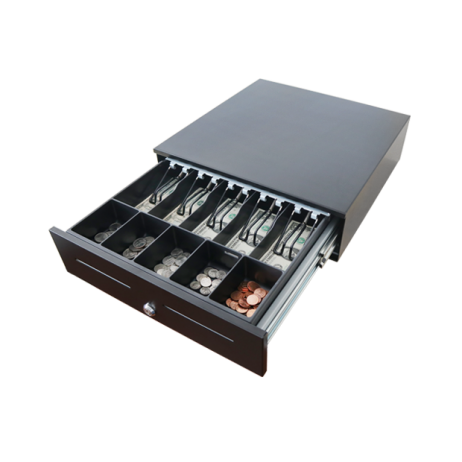

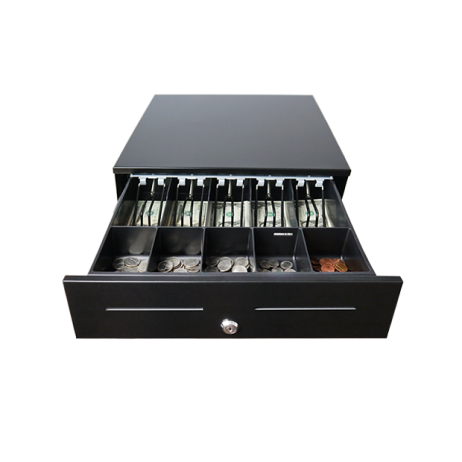

Cash Tray

5 bills,removable

Coin Tray

5 coins,fixed

Voltage

12V/24V or customized

Connector

RJ11 or customized

Color

Black/ beige or customized

Lockset

3 positions

Net Weight

10.5kg

Option

Cable Length
Micro Switch
Lockable Cover of Cash Tray
Stainless Front Panel
Under Mounting Bracket

Packing List

Resources
