Case Study
-
KH-3220
Features
▪ 1080P HD Commercial Display Sereen
▪ 10-point Capacitive Touch
▪ Built-in scanner, receipt printer
VIDEO ↓

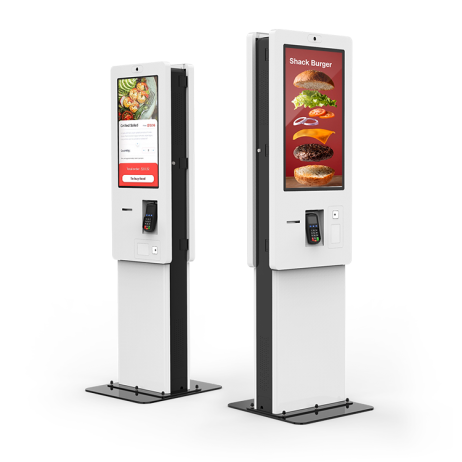

Front-rear Dual Screen Double Efficiency
The kiosk body is of state-of-the-art metal configuration, vertical flooring application, slim figure with strong stable base to keep safe in public, and small in occupation.

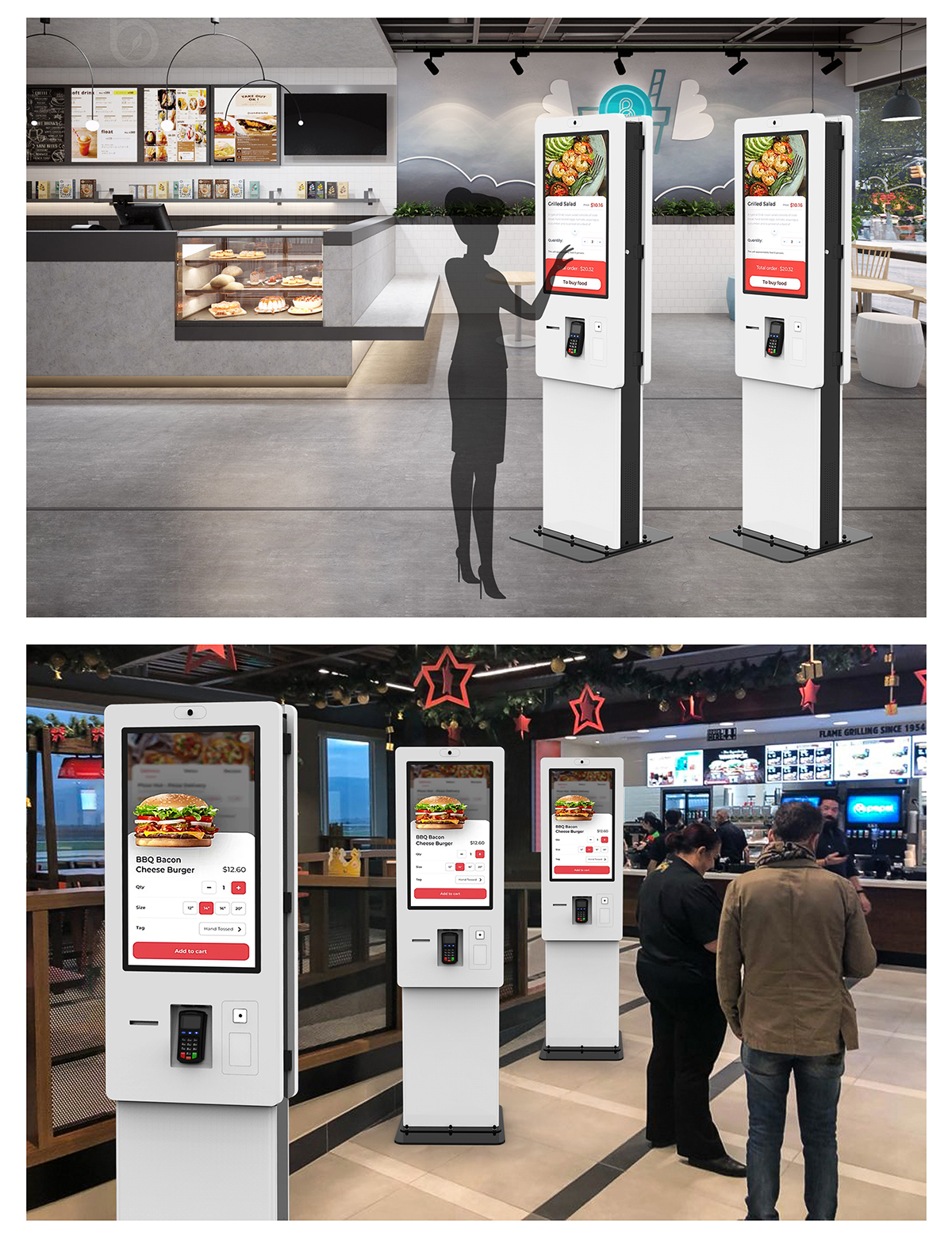

The kiosk of front-real dual screens, highly improves the commeral running efficency and also space occupation, it is very suitable for cartering industry like fast food restaurant, snack bar, coffee bar etc.
Perfect Visual & Lightning Touch
The kiosk body is of state-of-the-art metal configuration, vertical flooring application, slim figure with strong stable base to keep safe in public, and small in occupation.
The kiosk of front-real dual screens, highly improves the commeral running efficency and also space occupation, it is very suitable for cartering industry like fast food restaurant, snack bar, coffee bar etc.

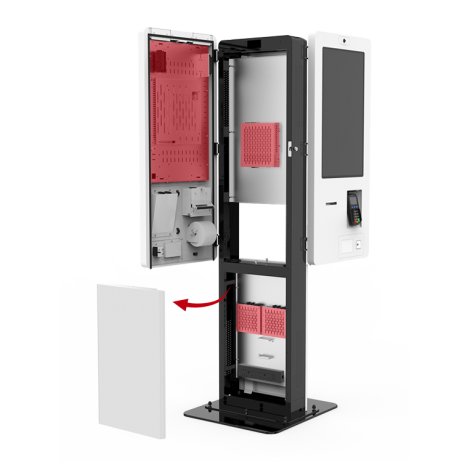

Internal Modularization
Display screen is configurated with side lockable door for easy daily maintanence and printing paper change.
Interal eletronic devices are individully located with metal mounting braket, for non-interference working environment and safety, and also easy maintenence and replacement.
Bilateral Speaker Multimedia Broadcasting
The kiosk is equipped with speakers on two sides, and supports more than 30 media broadcast modes, offering fabulous using experience and improving brand image of the store.
Hidden Power Routing
Two options for cable routing
Option 1: In the location of the kiosk where there is plug, just make the reserived outlet in the base align to the plug, then inserts the power cord into the plug. No power is exposed.
Option 2: Should location without plug, the power cord goes through inner and extends to side of the stand from the bottom, to reduce the power cord exposed. That makes the application space safe and neat.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 27" , 32" 1920x1080 16:9 300cd/㎡(27"), 400cd/㎡(32") 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 3000:1(27"), 1200:1(32") 12ms(27"), 8ms(32") H178° V178° 16.7M 60HZ |
Power
Voltage | 100-240VAC,50/60Hz | Power Consumption | <220W(27"), <250W(32") |
Enclosure

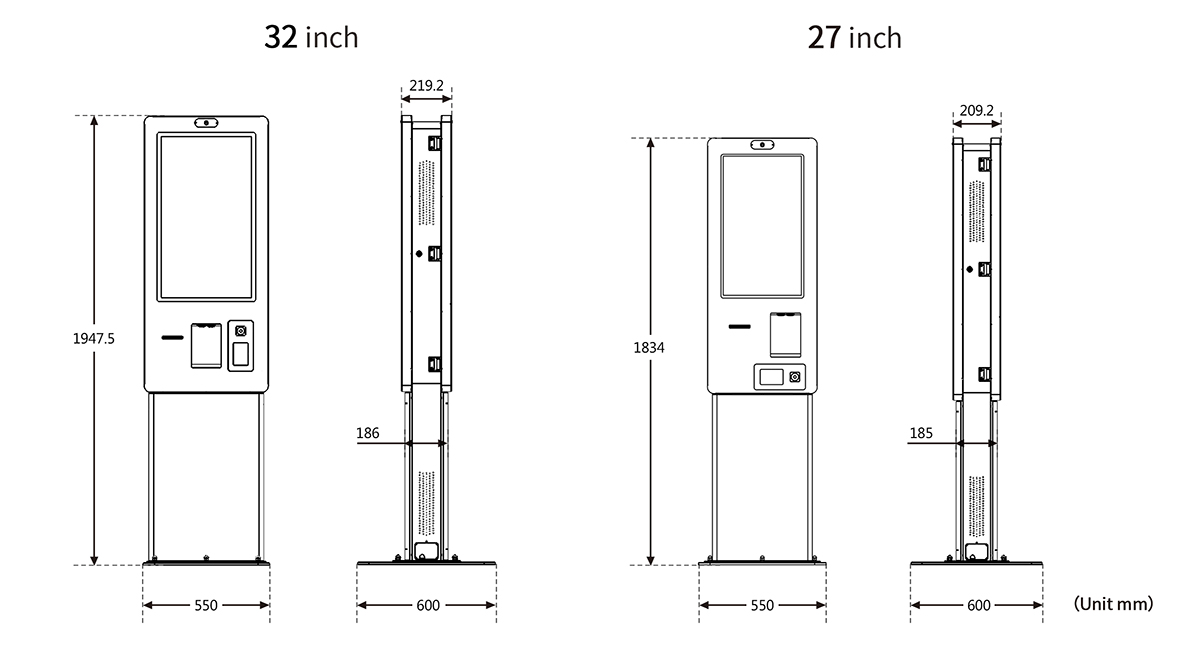

Material Surface Overall Size Net Weight Package Size Gross Weight | SPCC Powder coated W550×D600×H1834 mm (27") / W550×D600×H1947.5 mm (32") 1985×610×505 mm (27") / 2100×680×505 mm (32") 150kg(27"),177kg(32") |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
Resources
