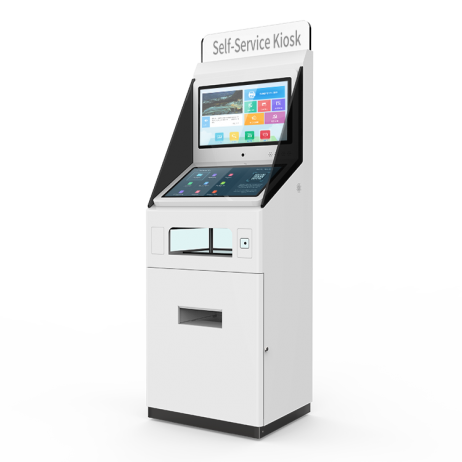

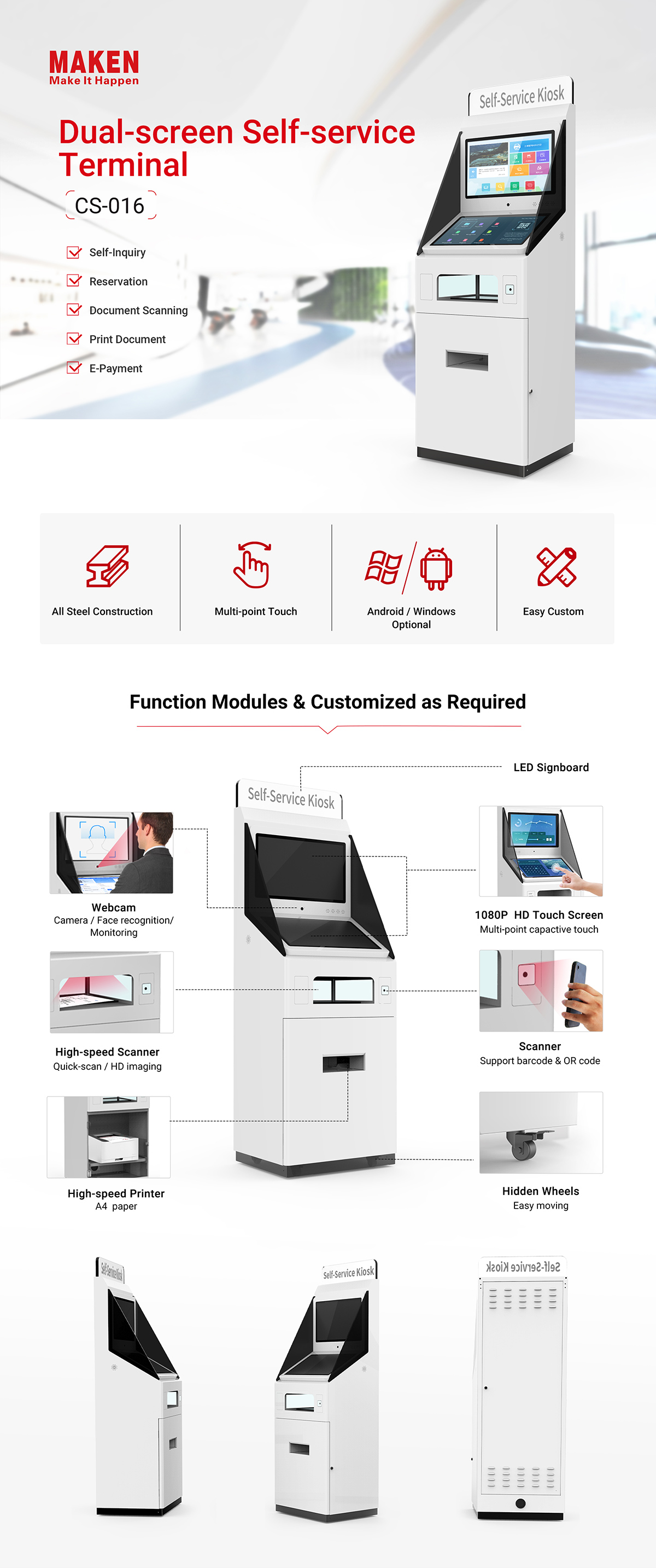

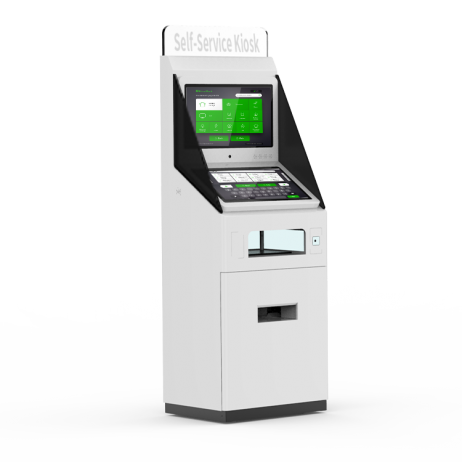

CS-016

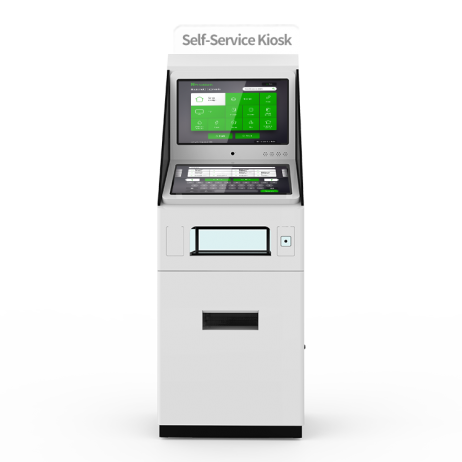

Dual-screen Self-service Terminal

Features

• Self-Inquiry

• Reservation

• Document Scanning

• Print Document

• E-Payment

Overview Application Specs & Assembly Resources

Dual-screen self-service terminal cs016

Application

Specs & Assembly

OS Support

Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*3/RJ45*1
Network
Etherner/WIFI

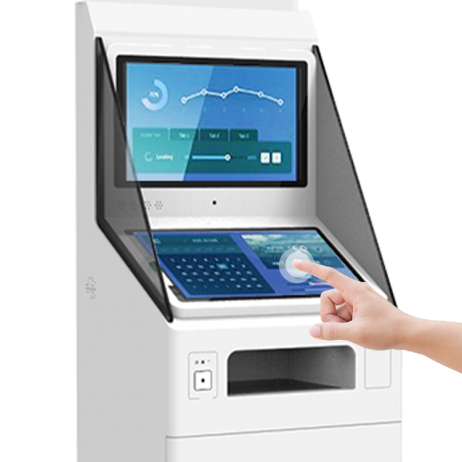

Screen

Type
Capacitive Touch (10 points)
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
3000:1
Screen size
21.5 inch(double-screen)
Response Time
18ms
Max Resolution
1920x1080
Viewing Angle
H178º V178º
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
300cd/m²
Refresh Rate
60Hz
Lifetime
30000hours

Power

Voltage
100-240VAC,50/60HZ
Power Consumption
<620W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
600*480*1811.5mm
Package
720*1931.5*690mm
Net Weight
301kg
Gross Weight
387kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%

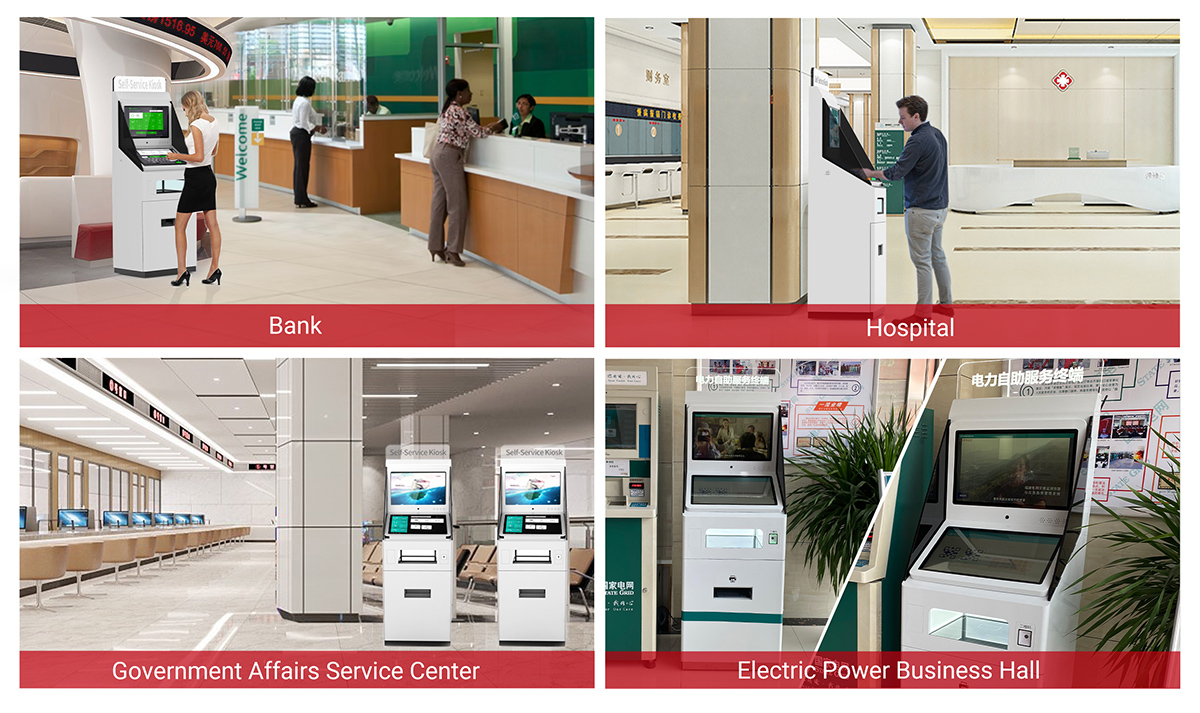

Application
Indoor

Build-in Devices

Printer
A4 paper

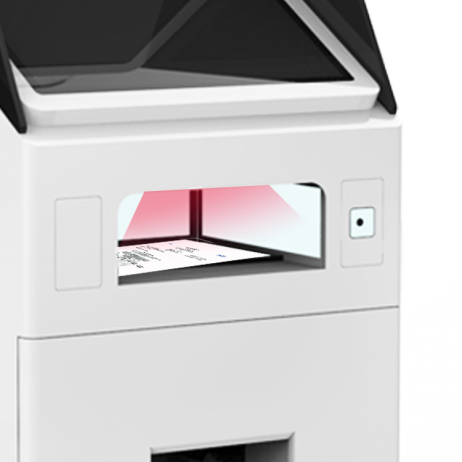

Scanner
1D/2D
