KP-1510C
Features
▪ 15.6 inch PCAP touchscreen
▪ Built-in scanner and printer

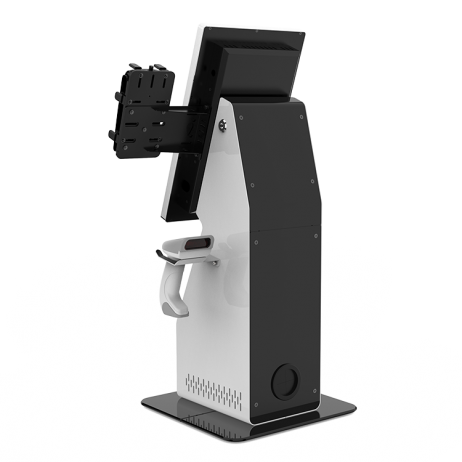

▪ Option: Card reader holder, scanner gun bracket, dual-screen

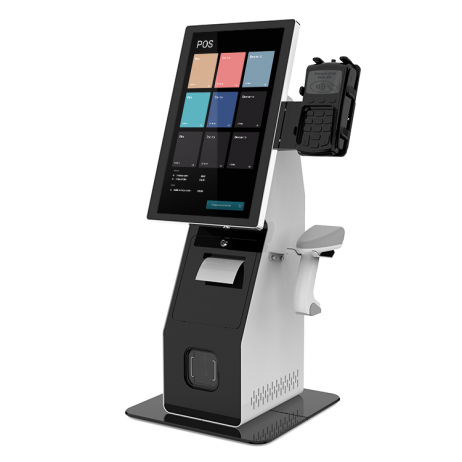

Smart POS for Efficient Self-checkout

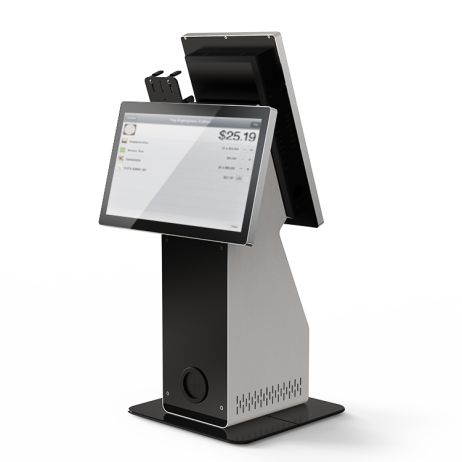

Desktop body, compact and delicate, occupying small space. All metal construction, stable and durable.The kiosk POS is equipped with a 15.6-inch touchscreen, built-in scanner and printer, and supports functionssuch as product code scanning, code scanning payment, card payment, and receipt printing. As a self -check-out kiosk, customers can operate the screen by themselves, scan goods, confirm orders and pay inde-pendently, freeing store staff to do other tasks and improving operation efficiency.Optional dual-touchscreen, supporting more application scenarios.
High Speed Scanning/Printing

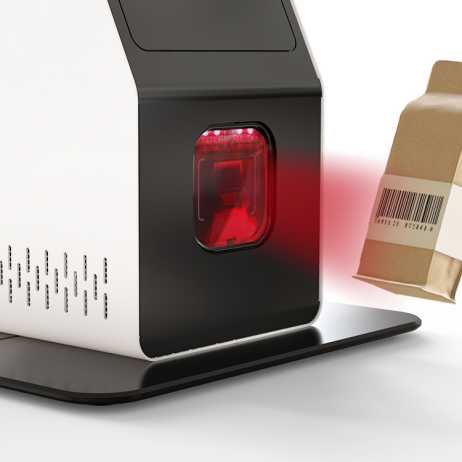

The built-in scanner with a wide-angle window can sensitively read commodity barcode, paper label,

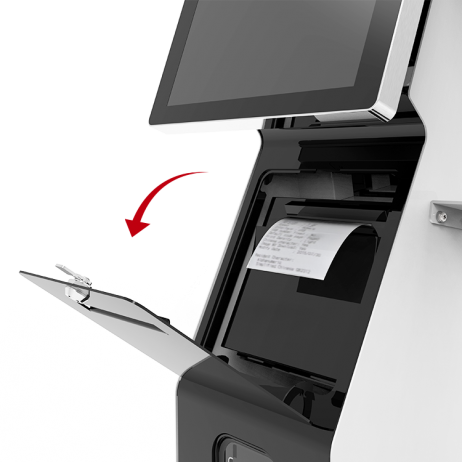

mobile phone QR code, etc.The high-speed 80mm thermal receipt printer provides slient printing. The lockable front door design,convenient for paper change and daily use.
Compact StructureSuit for Small Space
Slim and compact, with thick steel base, duable and stable.
Ideal solution to various stores, especially for those stores with limited space.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 15.6" 1920x1080 16:9 300cd/m² 15000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 1200:1 25ms H170° V170° 16.2M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <80W |
Enclosure

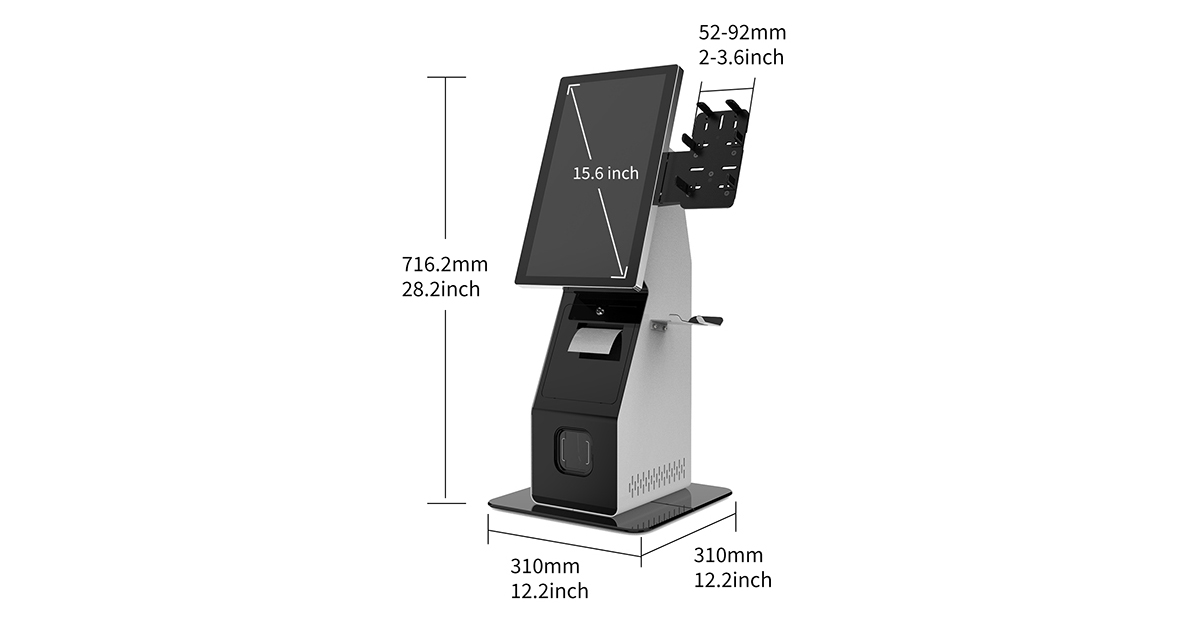

Material Surface Overall size Net Weight Gross Weight | SPCC Powder coated W310xD310xH716.2mm 16kg 20.5kg |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
