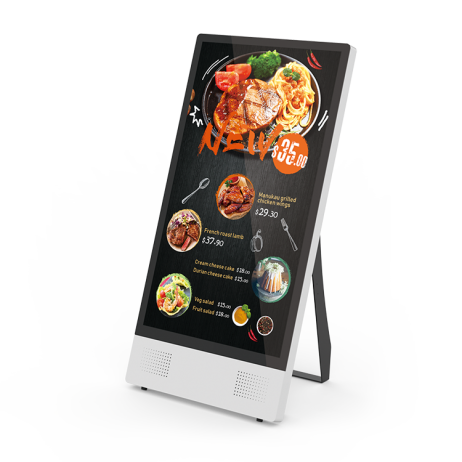

Digital signage dd4310-detachable drawing board
Digital signage dd4310-43 inch HD screen

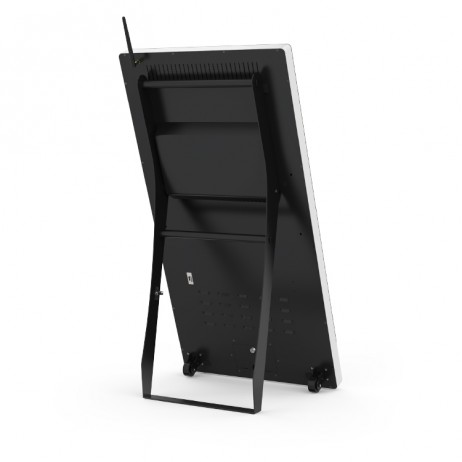

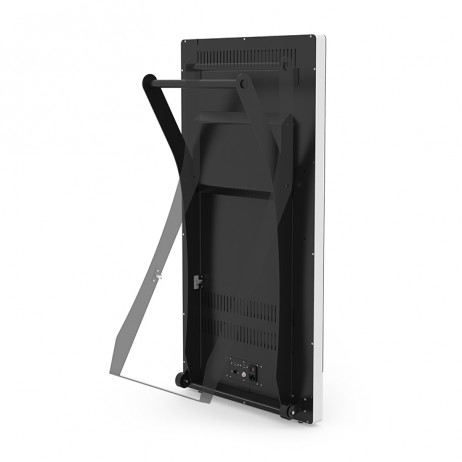

Digital signage dd4310-foldable supporting frame

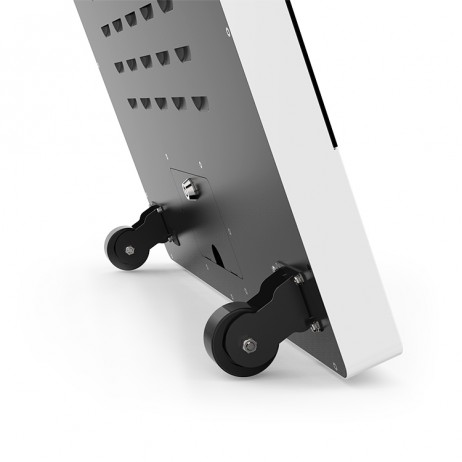

Digital signage dd4310-moving wheels

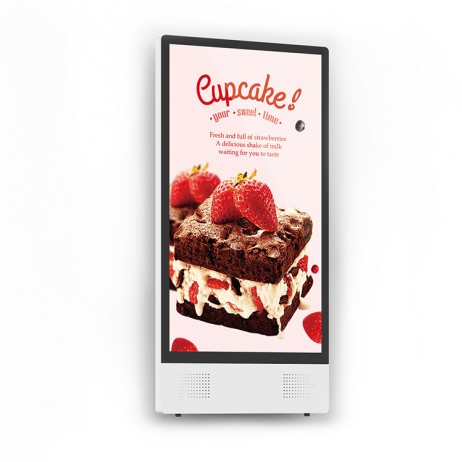

Digital signage dd4310-wall mounting

DD-4310

43 Inch Detachable Drawing Board Digital Signage

Features

• 43 inch HD high brightness screen
• Detachable and foldable supporting frame
• Equipped with moving wheels
• Support Ethernet and WIFI

Overview Application Specs Resources

43 inch detachable drawing board digital signage dd4310

Application

Specs

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J1900 quad-core 2.0G
System Memory
4G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI
Android 6.0 and higher version
CPU
A83T Cortex-A7 octa-core 2.0GHz
System Memory
1G/2G
Disk
8G/16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

LCD

Type
TFT-LCD
Contrast Ratio
1200:1
Screen size
43〞
Response Time
8ms
Max Resolution
1920×1080
Viewing Angle
H178° V178°
Aspect Ratio
16:9
Display Colors
16.7M
Brightness
400cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
＜75W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L590×W280×H1170（Floor-standing）
L590×W96×H1160（Wall mounting）
Package
L1325×W445×H825
Net Weight
37kg （Floor-standing）/32.5kg（Wall mounting）
Gross Weight
67kg（Floor-standing）/62.5kg（Wall mounting）

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor
