Maken - 32 Inch Wall Mounted Digital Signage DW-3200

DW-3200

32 Inch Wall Mounted Digital Signage

Features

• IPS 1080P HD high brightness screen

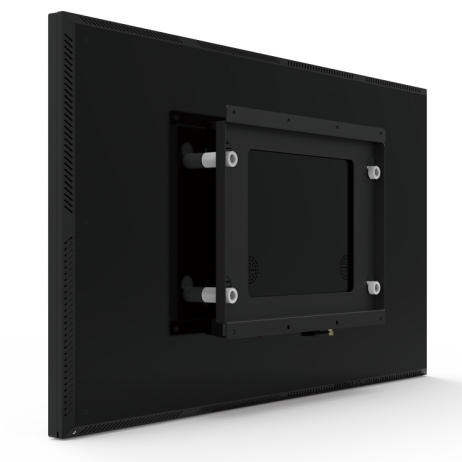

• Support standard VESA, horizontal or vertical installation
• Support Ethernet and WIFI

Overview Application Specs Resources

32 inch wall mounted digital signage dw3200

Application

Specs

DW-3200

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

32 inch

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

350cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜60W

Enclosure

Material

SPCC

Surface

Powder coating

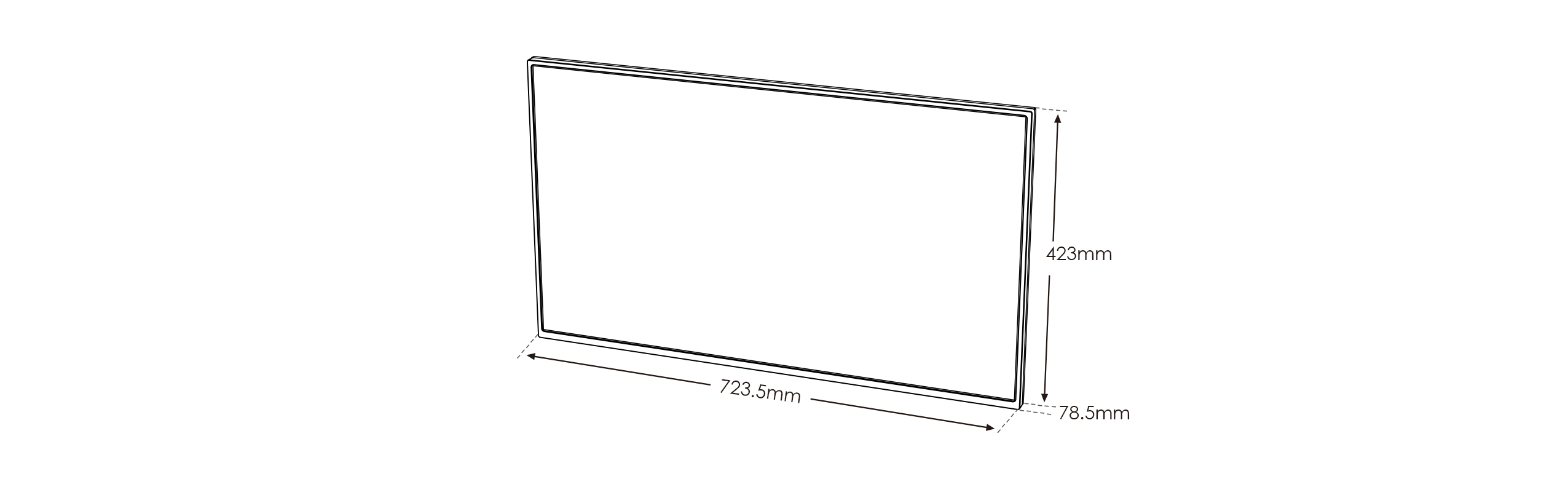

Overall Size

L723.5×W78.5×H423mm

Package

L845×W220×H560mm

Net Weight

12.0kg

Gross Weight

15.5kg

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

Resources

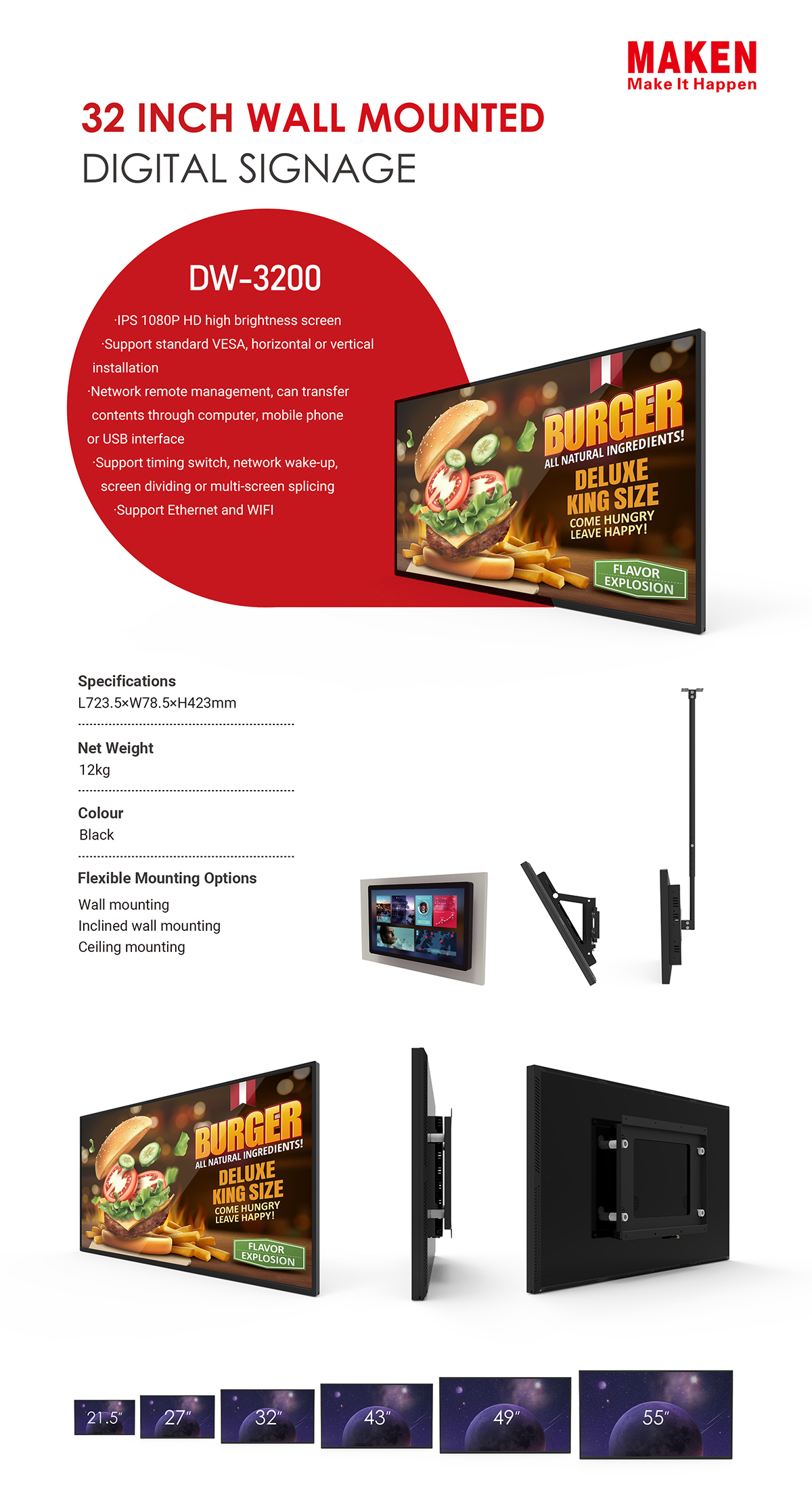

Brochure（PDF）
