Maken - 32 Inch Removable Digital Signage DD-3200

DD-3200

32 Inch Removable Digital Signage

Features

• Durable metal Material and ultra HD panel
• Support power from external power or battery power(not provide) supply
• Universal wheels for free movement

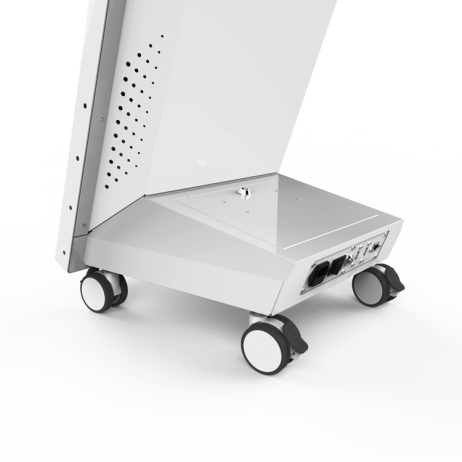

• Battery compartment for power bank can be locked

VIDEO

Overview Application Specs & Assembly Resources

32 inch removable digital signage dd3200

Application

Specs & Assembly

DD-3200

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J1900 quad-core 2.0G

System Memory

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

RJ45/WIFI

Android 6.0 and higher version

CPU

Allwinner A83T Cortex-A7 octa-core 2.0GHz

System Memory

1G/2G

Disk

8G/16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

RJ45/WIFI

LCD

Type

TFT-LCD

Contrast Ratio

1200:1

Screen size

32 inch

Response Time

8ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

400cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

AC100V-240V,50/60Hz

Power Consumption

＜60W

Enclosure

Material

SPCC

Surface

Powder coated

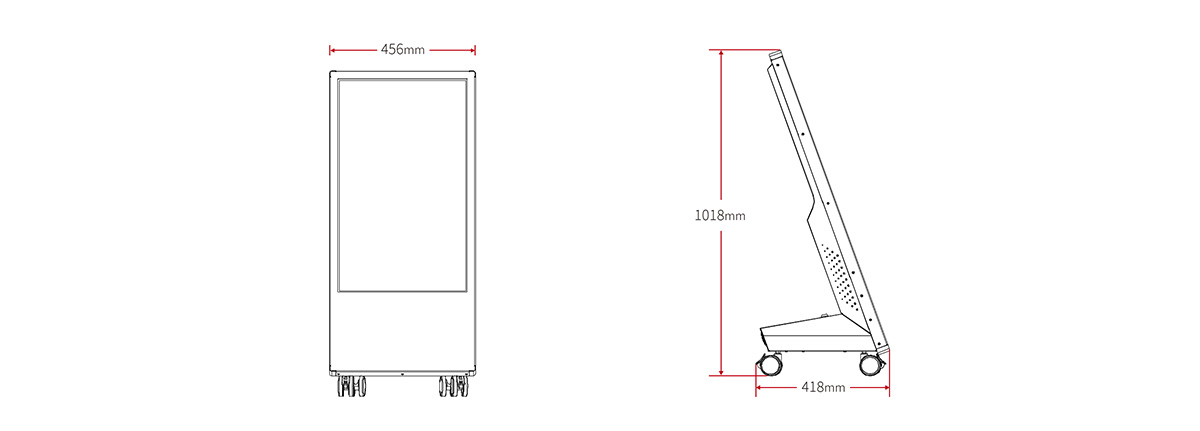

Overall Size

L456×W418×H1018mm

Package

L1160×W520×H616mm（Carton）
L1160×W520×H616mm（Wooden case）

Net Weight

29.5kg

Gross Weight

35kg(Carton)，65kg(Wooden case)

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

Indoor

Battery

Battery Compartment

240×195×50mm

Power Bank Requirement (not provide)

180000mAh，input：19VDC(DC5.5*2.5)，output：24VDC(DC5.5*2.5)

Assembly & Installation

Resources

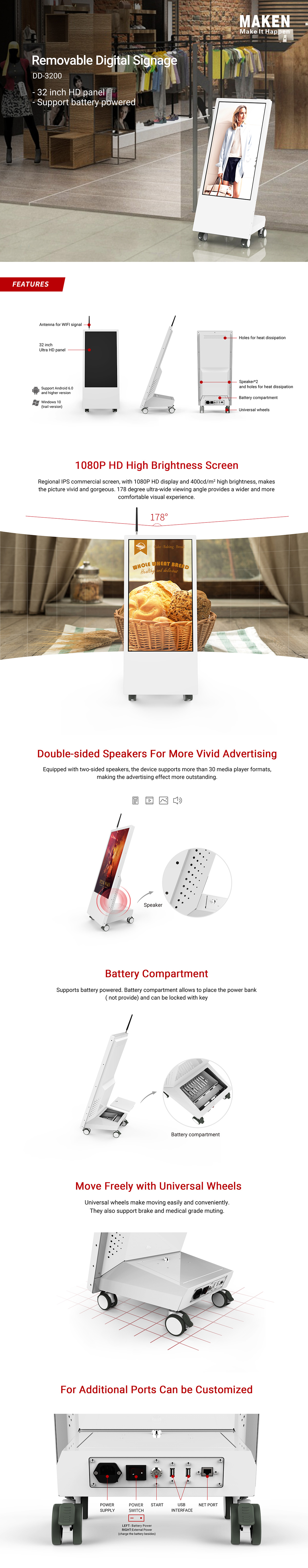

Brochure（PDF）
