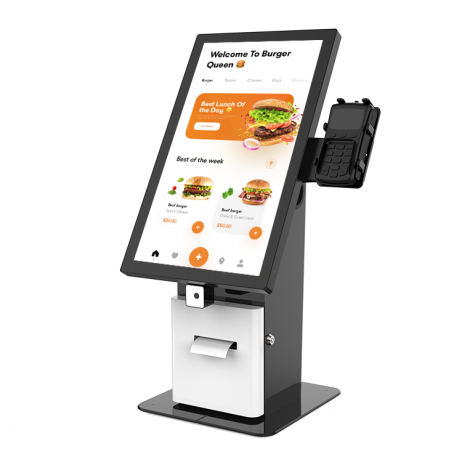

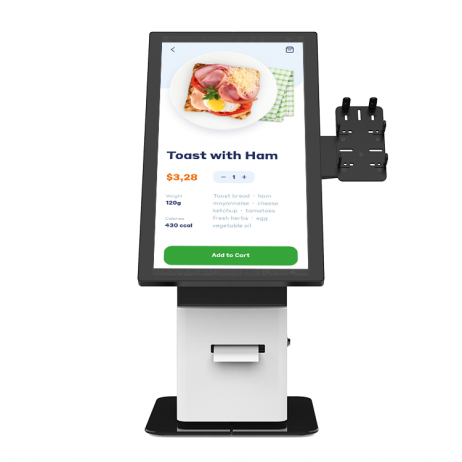

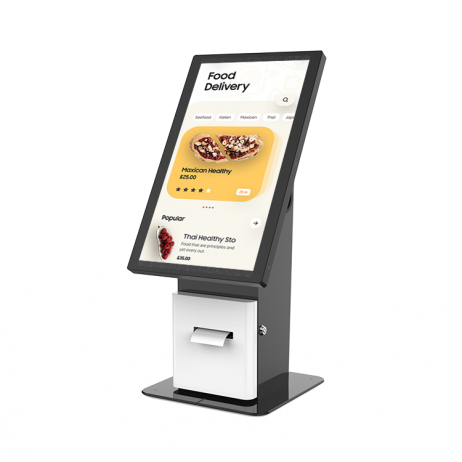

KH-2110C
Features
▪ 21.5 inch PCAP touchscreen
▪ Built-in 80mm thermal printer
▪ Option: Scanner, Card reader holder

Suitable for Various Restaurants
Desktop Self-ordering kiosk, compact design saves space, suitable for all dining establishments like fast food restaurants, restaurants, cafes, beverage shops, etc.
Multiple kiosks can be deployed at once to allow customers to self-order, improving order efficiency and operational efficiency of the store.
The full metal body is sturdy and durable, the touchscreen operation is smooth, with a built-in ticket printer for seamless ticket printing.
Optional card reader holder, scanner etc. to support card payment, QR code payment. Provides customers with a stable and reliable self-ordering experience.

Multi-point Sensitive Touch Screen
21.5 inch original brand capacitive touchscreen, 1080P HD image quality, 10-point touch. Industrial grade motherboard, smooth operation 24/7. Quick response to every operation.

High-frequency Printing Without Worries
Built-in 80mm ticket printer, high speed, silent printing; can hold paper rolls up to 80mm in diameter, smooth paper feeding, auto paper cutting, stable performance, easily handles high frequency printing at dining establishments.

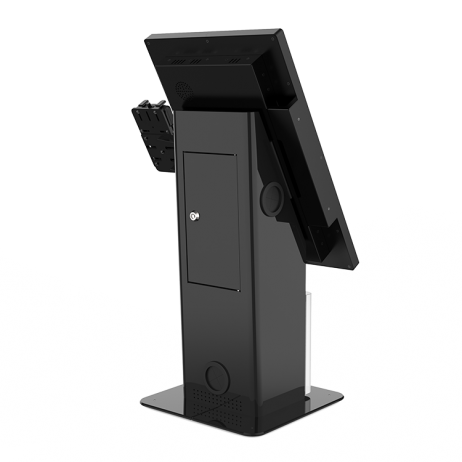

Key lock, side opening door, convenient and quick paper change.



OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 21.5" 1920x1080 16:9 500cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 1000:1 14ms H178° V178° 16.7M 60HZ |
Power
Voltage | 100-240VAC,50/60Hz | Power Consumption | <35W |
Enclosure
Material Surface Overall size Net Weight Package size

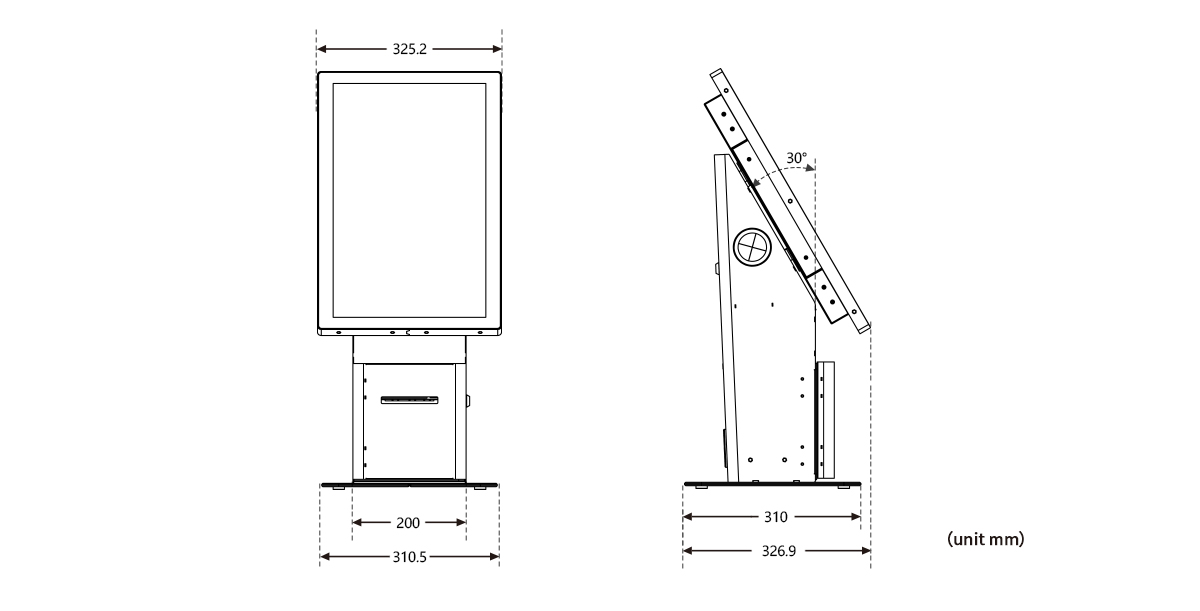

Gross weight | SPCC Powder coated W325.2×D326.9×H740.1mm 12.2kg (stand) / 8kg (screen) W660xD270xH285 mm (stand) W650xD190xH450 mm (21.5" moniter) 15kg (stand) / 11kg (screen) |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
