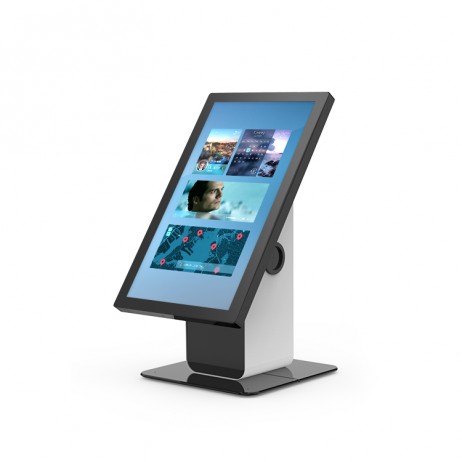

Maken - 21.5 Inch Information Kiosk KF-2100C

KF-2100C

21.5 Inch Information Kiosk

Features

• 21.5 inch screen, 10 points PCAP

• Support Ether and WIFI

• Take up less area, suitable for limited space

• Option: camera, scanner, payment holder

Overview Application Specs Resources

21.5 inch information kiosk kf2100c

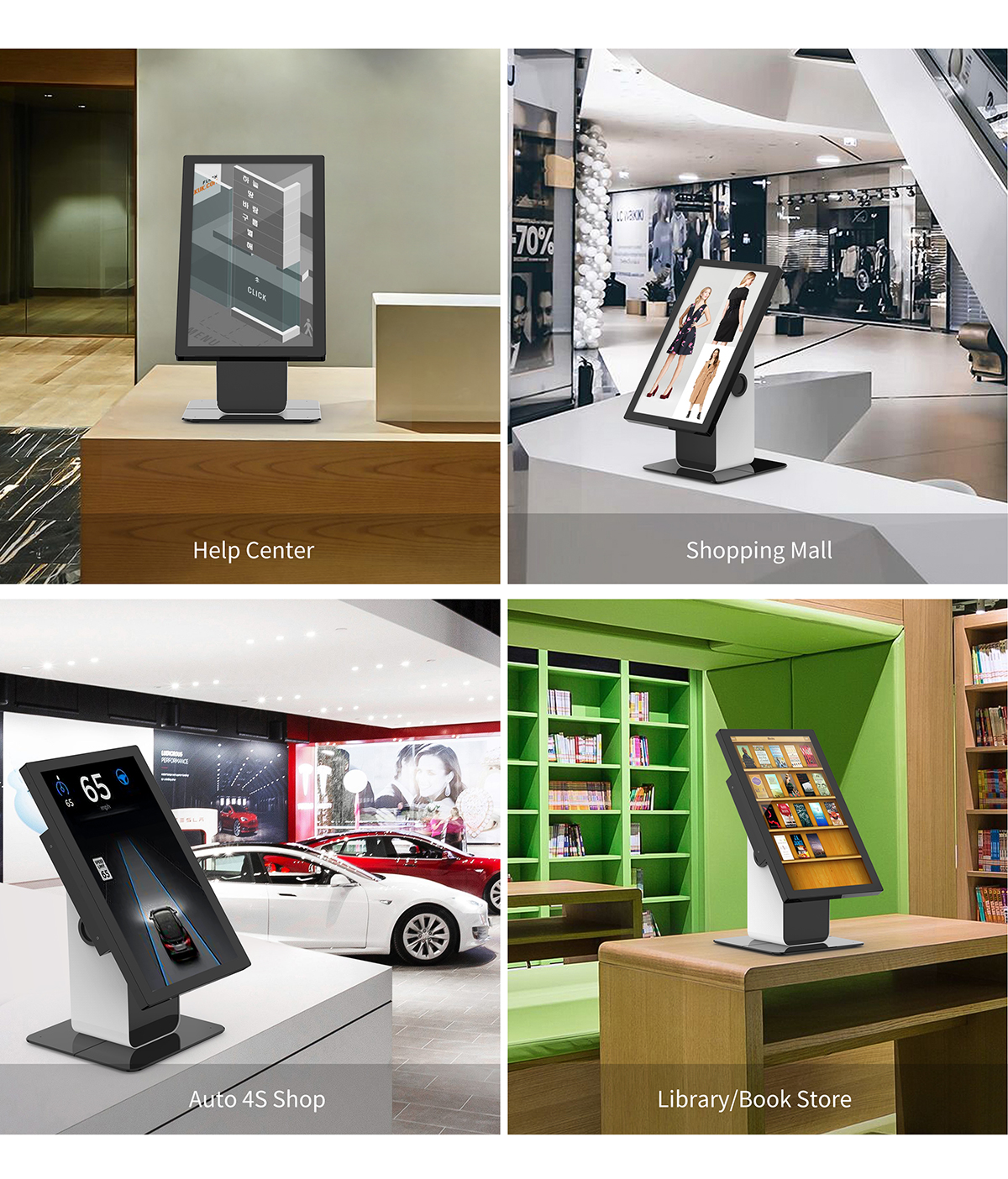

Application

Image caption

Specs

KF-2100C

OS Support

WIN 10 (trial version)

CPU

Intel Celeron J6412 quad-core 2.0G

System Memory

4G/8G

Disk

128G/256G(SSD)

Speaker

5W*2

Interface

USB*4/RJ45*1

Network

Etherner/WIFI

Android 11

CPU

RK3568 Cortex-A55 quad-core 2.0GHz

System Memory

2G/4G

Disk

16G/32G/64G

Speaker

5W*2

Interface

USB*2/RJ45*1

Network

Etherner/WIFI

Screen

Type

PCAP 10 points

Response Time

10ms

LCD

Type

TFT-LCD

Contrast Ratio

3000:1

Screen size

21.5"

Response Time

18ms

Max Resolution

1920×1080

Viewing Angle

H178° V178°

Aspect Ratio

16:9

Display Colors

16.7M

Brightness

300cd/㎡

Refresh Rate

60Hz

Panel Life

30000 hours

Power

Voltage

100-240VAC,50/60Hz

Power Consumption

＜40W

Enclosure

Material

SPCC

Surface

Powder coated

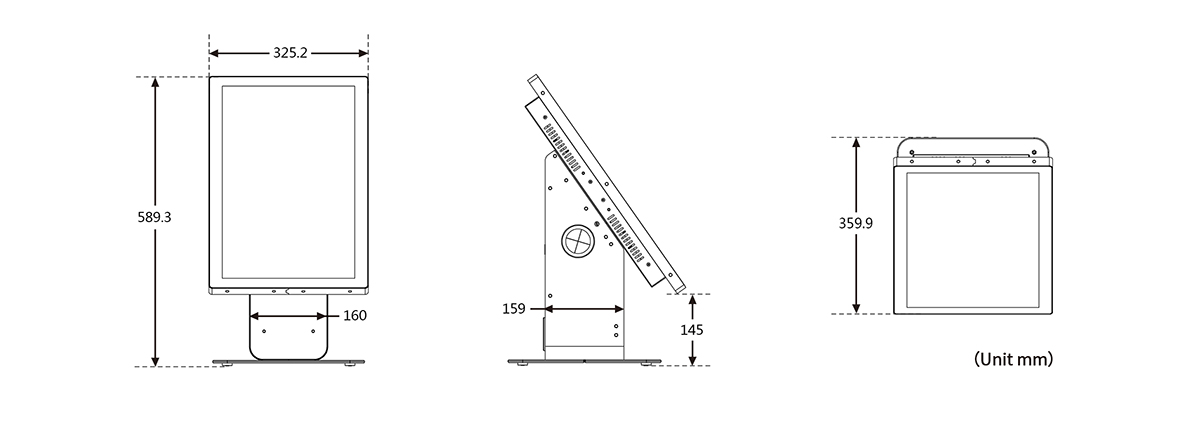

Overall Size

310×310×435（stand）/ 325×360×589（kiosk- 21.5 inch monitor）

Package

490×225×230（stand）/ 650×190×450（21.5 inch monitor）

Net Weight

8.5kg（stand）/ 16kg（kiosk- 21.5 inch monitor）

Gross Weight

9.2kg（stand）/ 10.5kg（21.5 inch monitor）

Application

Working Temperature

0~40℃

Storage Temperature

-20~60℃

Working Humidity

20%~80%

Storage Humidity

10%~90%

Application

indoor

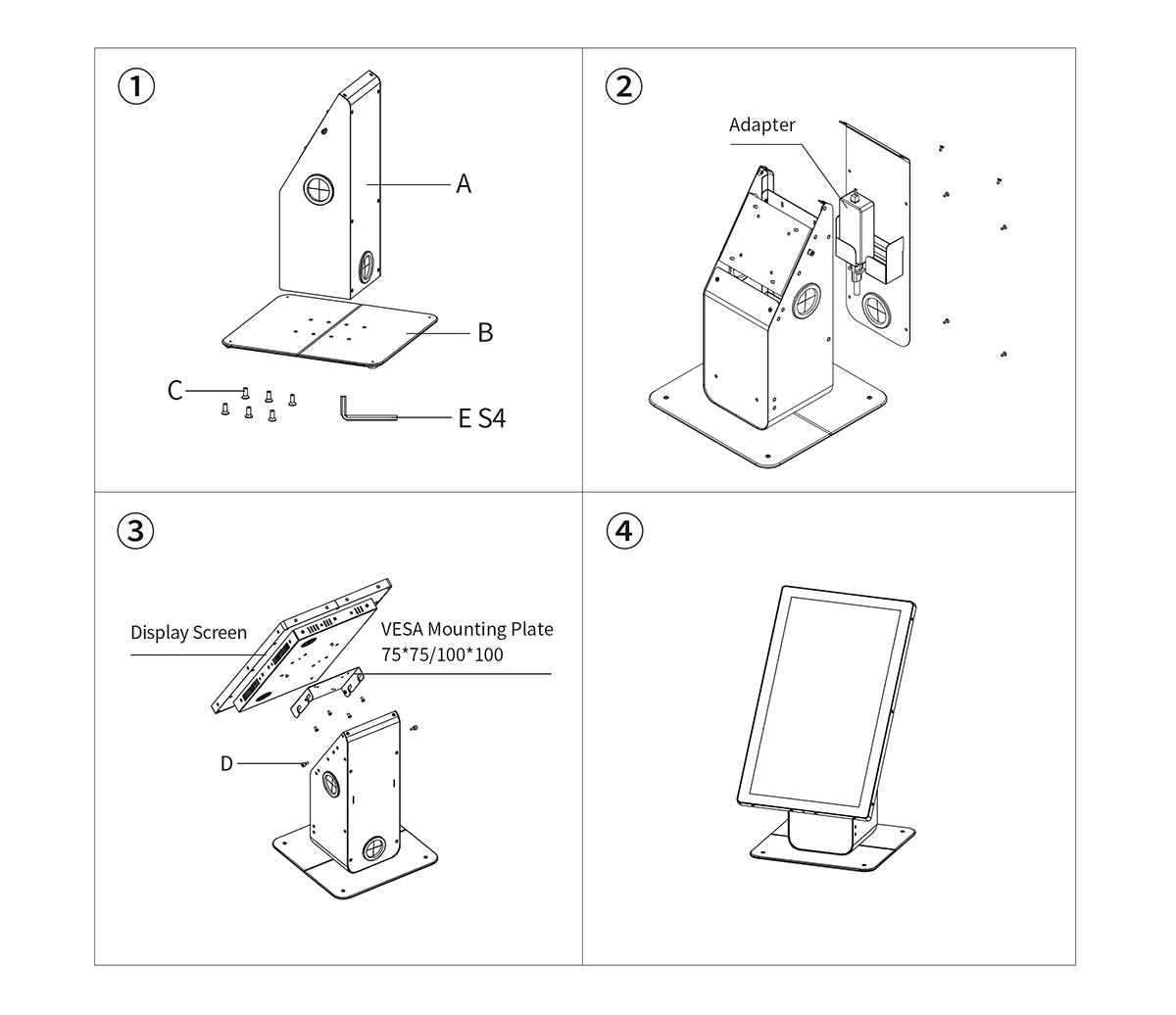

Assembly & Installation

Resources

Brochure（PDF）
