KF-1900C

19 Inch Desktop Information Kiosk

Features

•  Simple and stylish appearance
• Multi-touch capacitive screen
• Flexible choices of windows and android system
•  Support independent software & hardware expansion

Overview Application Specs Resources

19 inch desktop information kiosk kf1900c

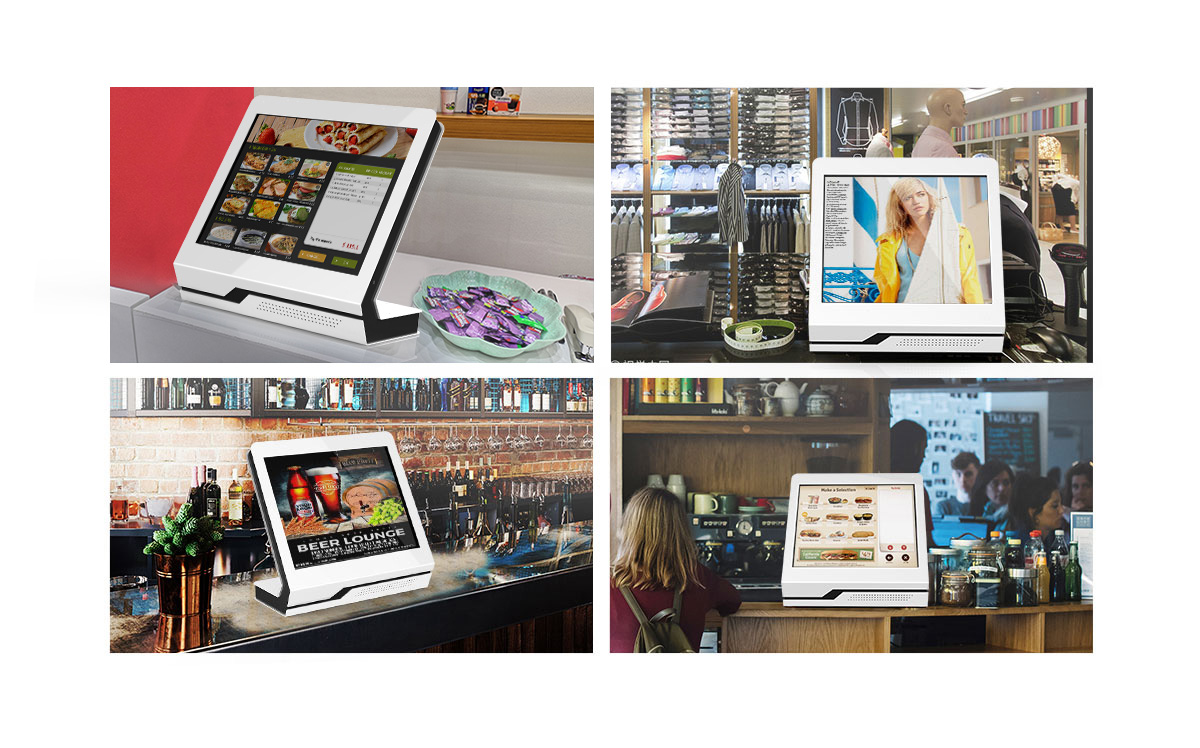

Application

Specs

KF-1900C

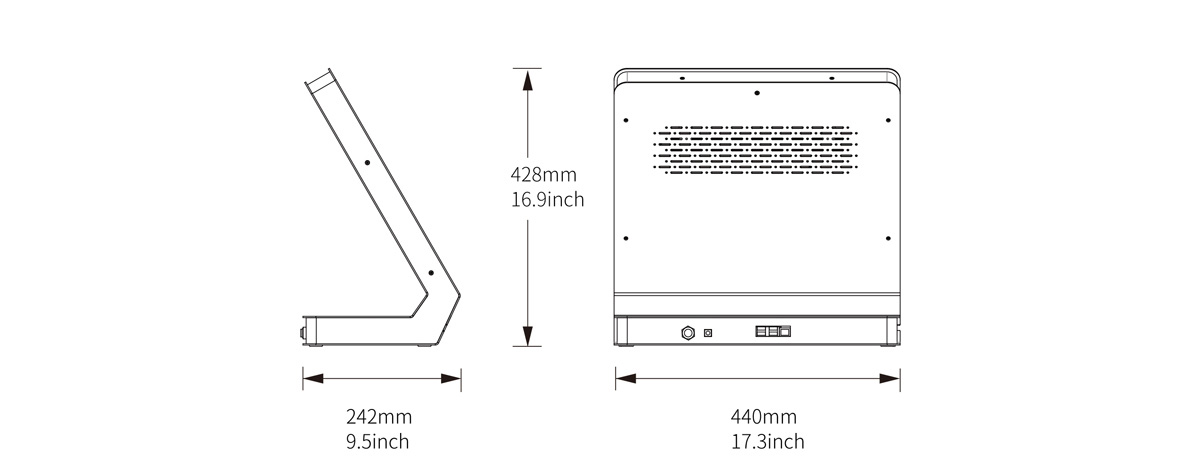

Product size picture

OS Support

WIN 10 (trial version)
CPU
Intel Celeron J6412 quad-core 2.0G
System Memory
4G/8G
Disk
128G/256G(SSD)
Speaker
5W*2
Interface
USB*4/RJ45*1
Network
Etherner/WIFI
Android 11
CPU
RK3568 Cortex-A55 quad-core 2.0GHz
System Memory
2G/4G
Disk
16G/32G/64G
Speaker
5W*2
Interface
USB*2/RJ45*1
Network
Etherner/WIFI

Screen

Type
Projected Capacitive Touch(10 points)
Response Time
10ms

LCD

Type
TFT-LCD
Contrast Ratio
1000:1
Screen size
19〞
Response Time
5ms
Max Resolution
1280×1024
Viewing Angle
H178° V178°
Aspect Ratio
5:4
Display Colors
16.7M
Brightness
250cd/㎡
Refresh Rate
60Hz
Panel Life
30000 hours

Power

Voltage
100-240VAC,50/60Hz
Power Consumption
＜40W

Enclosure

Material
SPCC
Surface
Powder coated
Overall Size
L440×W242×H428
Package
L543×W353×H543
Net Weight
13.8kg
Gross Weight
18.3kg

Application

Working Temperature
0~40℃
Storage Temperature
-20~60℃
Working Humidity
20%~80%
Storage Humidity
10%~90%
Application
indoor

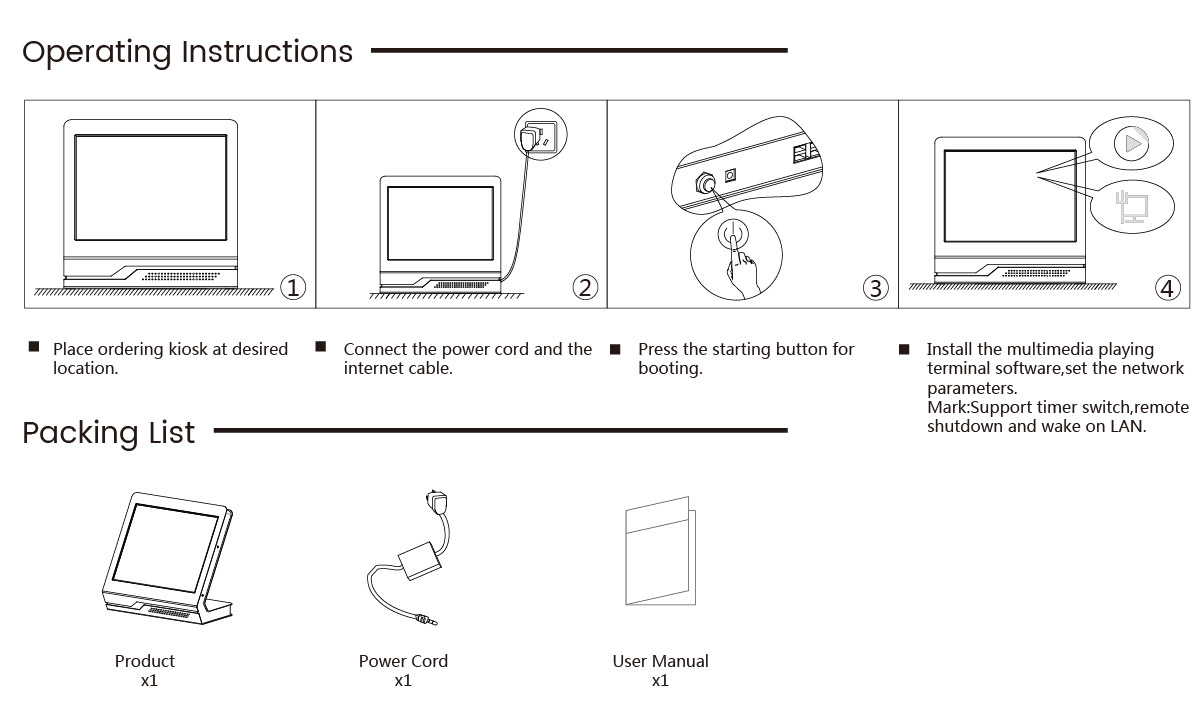

Assembly & Installation
