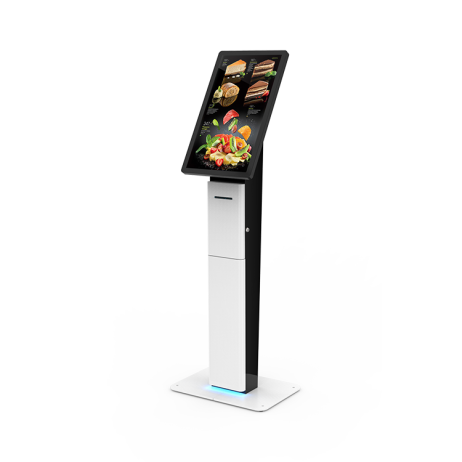

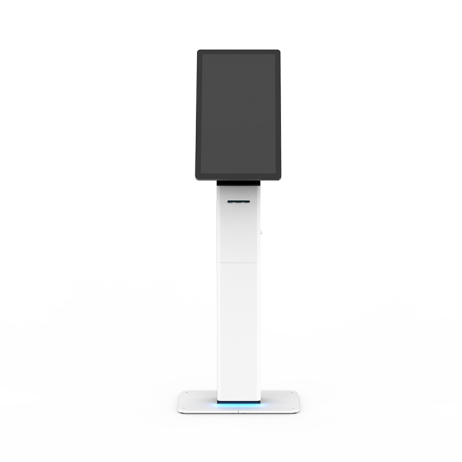

KH-2700
Features
▪ 27" touchscreen, 10 points projective compacitive touch
▪ Built-in high speed printer with thick paper
▪ Support Ethernet and WIFI
▪ Option: Camera, scanner, card reader holder
VIDEO ↓
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 27" 1920x1080 16:9 300cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 3000:1 12ms H178° V178° 16.7M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <50W |
Enclosure

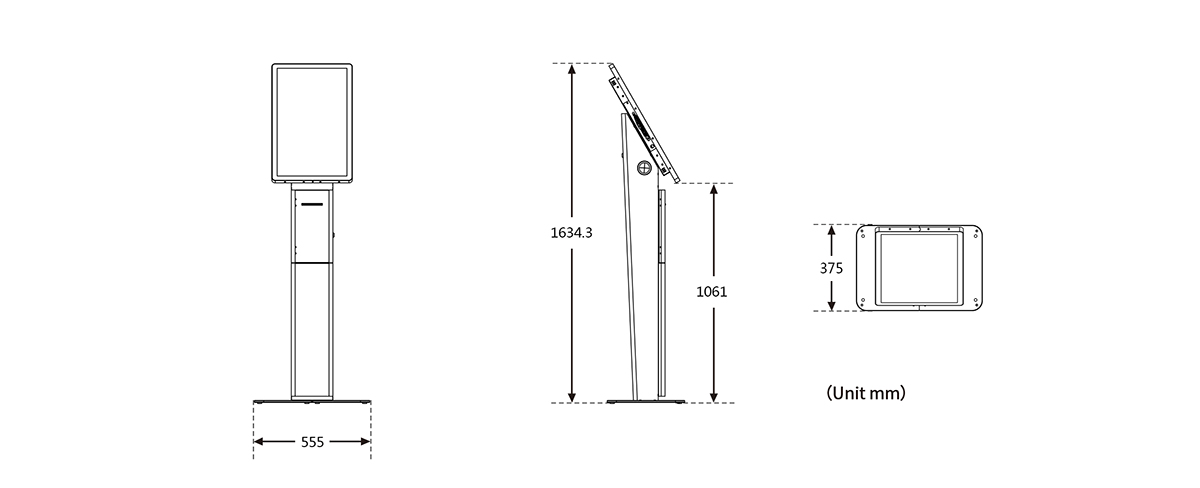

Material Surface Overall size Net Weight Package size Gross Weight | SPCC Powder coated W555xD375xH1634 mm 43.5kg W1470×D368×H285（stand）/ W770×D220×H570(screen） 39kg（stand），11.5kg（screen） |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
Built-in

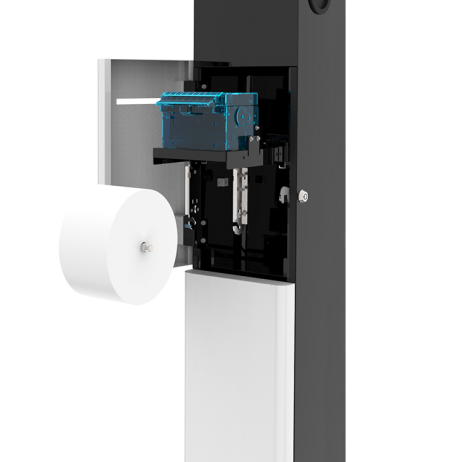

| Printer | Thermal printer with auto-cutter, paper roll width 80mm |
