KR-2100
Features
▪ Compatible with 21.5 inch touch screen
▪ 10 points PCAP touch
▪ Built-in scanner, built-in printer
▪ Support Ethernet & WiFi
▪ Options: card reader holder,camera
VIDEO↓
Compact & Durable, Time-saving & Efficient

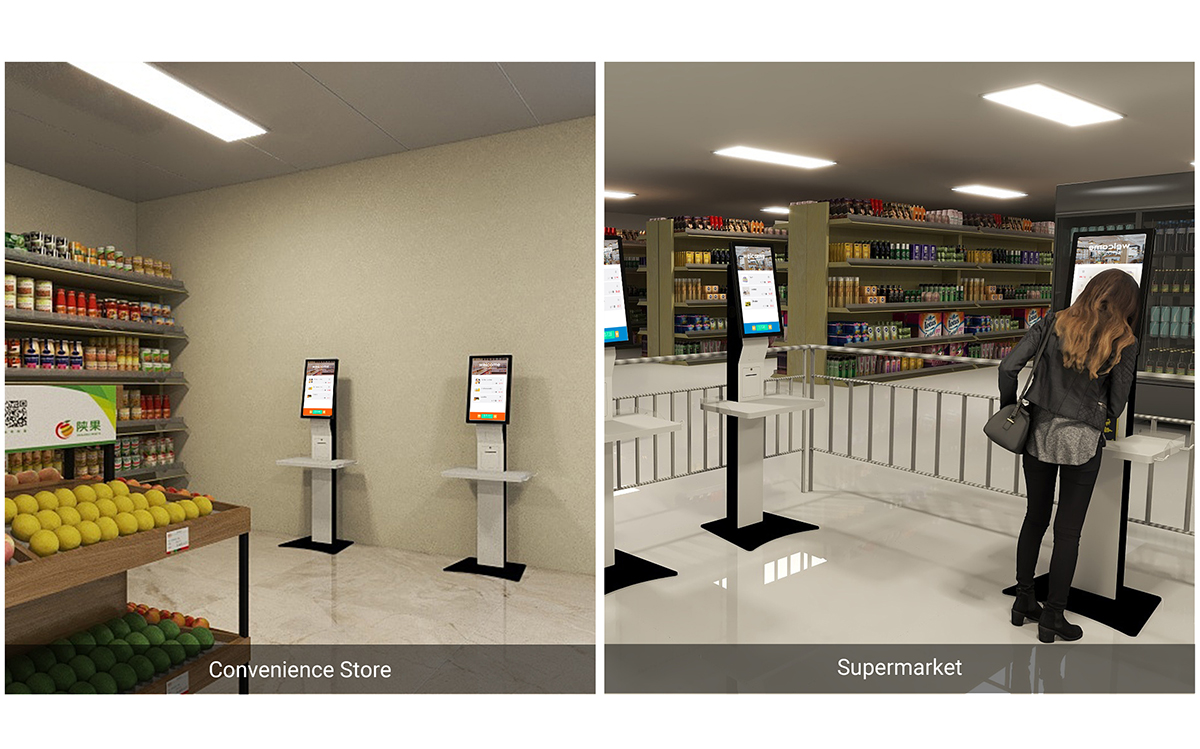

The self-checkout Kiosk designs with compact structure, with built-in scanner, bulit-in printer, optionalcard reader holder, to meet different needs of checkout enviroments. Compact design, small footprint,tailor-made for small supermarkets, convenience stores, etc.Providing fast and convenient checking out experience with the self-service, shorten the waiting time,reduce the labor cost, also improve the store operation & service, and help to gain the reputation.
OS Support
| ||
WIN 10 (trial version) | CPU System Memory Disk Speaker Interface Network | Intel Celeron J6412 Quad-core 2G 4G/8G 128G/256G(SSD) 5W*2 USB*4/RJ45*1 Ethernet/WlFl |
Android 11 |
System Memory Disk Speaker Interface Network |
4G 32G 5W*2 USB*2/RJ45*1 Ethernet/WIFI |
Screen
| Type | PCAP 10points | Response Time | 10ms |
LCD
Type Screen size Max Resolution Aspect Ratio Brightness Panel Life | TFT-LCD 21.5" 1920x1080 16:9 500cd/m² 30000 hours | Contrast Ratio Response Time Viewing Angle Display Colors Refresh Rate | 1000:1 14ms H178° V178° 16.7M 60HZ |
Power
| Voltage | 100-240VAC,50/60Hz | Power Consumption | <35W |
Enclosure

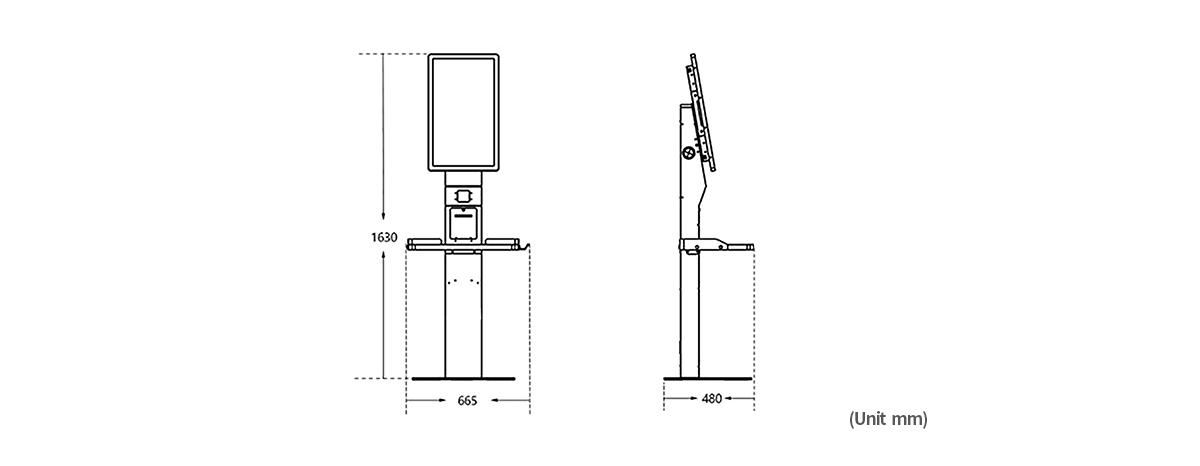

Material Surface Overall size Net Weight Overall size
Gross Weight
| SPCC Powder coated W665xD480xH1630 mm 57kg W555×D285×H1640mm W650×D450×H190mm(21.5-inch screen only) 53.5kg |
Application
Working temperature Working humidity Application | 0~40°C 20%~80% Indoor | Storage temperature Storage humidity | -20~60°C 10%~90% |
